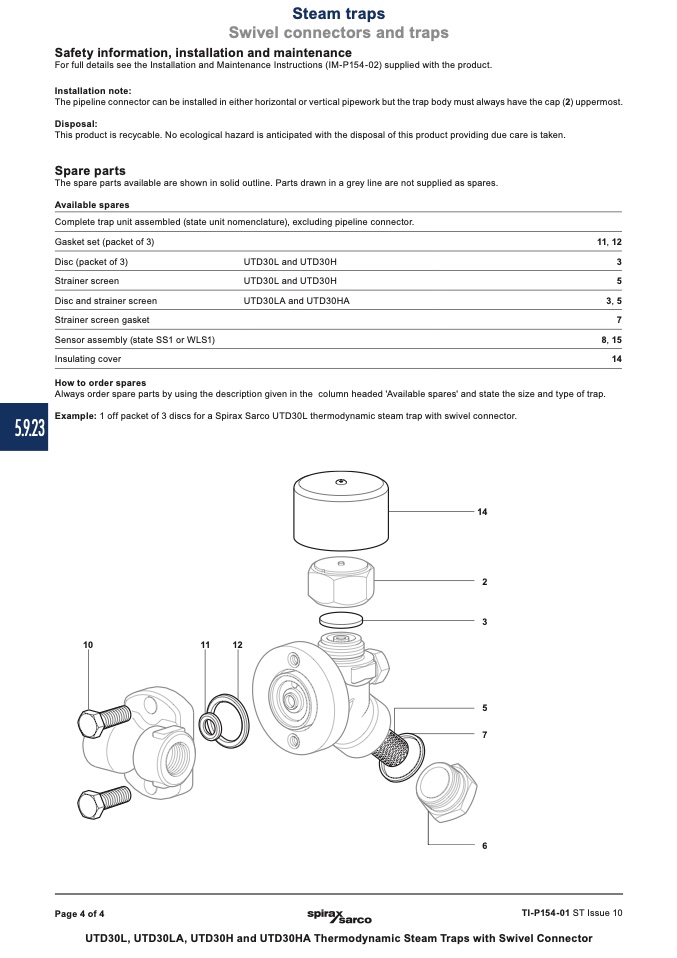

Steam traps

Swivel connectors and traps

5.9.23

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions (IM-P154-02) supplied with the product.

Installation note:

The pipeline connector can be installed in either horizontal or vertical pipework but the trap body must always have the cap (2) uppermost.

Disposal:

This product is recycable. No ecological hazard is anticipated with the disposal of this product providing due care is taken.

Spare parts

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spares

Complete trap unit assembled (state unit nomenclature), excluding pipeline connector.

Gasket set (packet of 3)

Disc (packet of 3)

Strainer screen

Disc and strainer screen

Strainer screen gasket

Sensor assembly (state SS1 or WLS1)

Insulating cover

How to order spares

UTD30L and UTD30H

UTD30L and UTD30H

UTD30LA and UTD30HA

11, 12

3

5

3, 5

7

8, 15

14

Always order spare parts by using the description given in the column headed 'Available spares' and state the size and type of trap.

Example: 1 off packet of 3 discs for a Spirax Sarco UTD30L thermodynamic steam trap with swivel connector.

10

11

12

14

2

3

5

7

6

Page 4 of 4

TI-P154-01 ST Issue 10

UTD30L, UTD30LA, UTD30H and UTD30HA Thermodynamic Steam Traps with Swivel Connector
