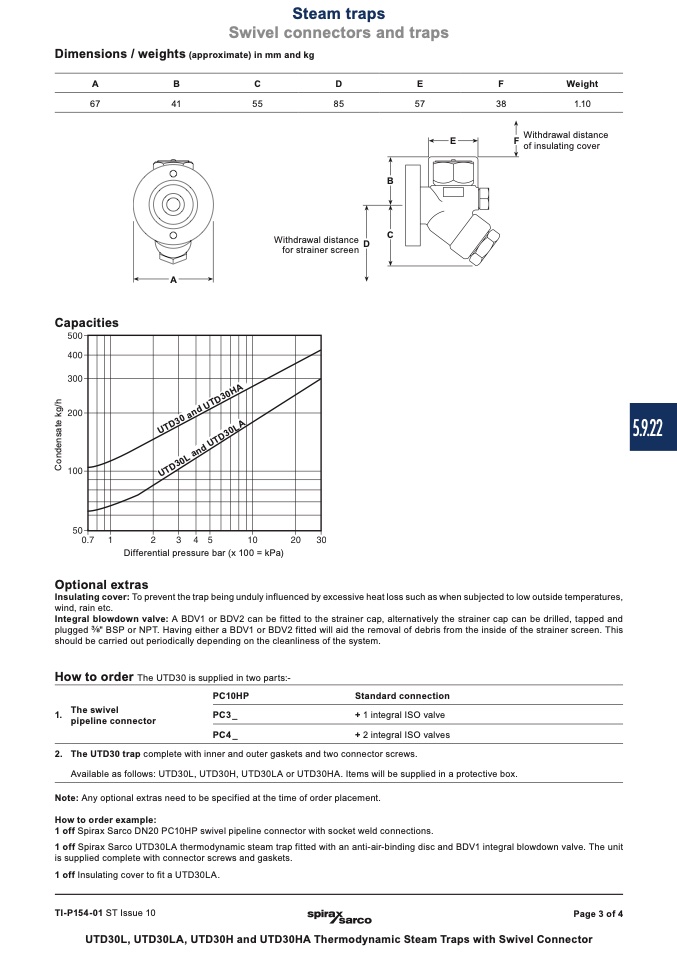

Steam traps

Swivel connectors and traps

Dimensions / weights (approximate) in mm and kg

A

B

C

D

E

F

Weight

67

41

55

85

57

38

1.10

E

F Withdrawal distance

of insulating cover

Withdrawal distance

D

for strainer screen

B

C

Capacities

A

Differential pressure bar (x 100 = kPa)

Optional extras

Insulating cover: To prevent the trap being unduly influenced by excessive heat loss such as when subjected to low outside temperatures,

wind, rain etc.

Integral blowdown valve: A BDV1 or BDV2 can be fitted to the strainer cap, alternatively the strainer cap can be drilled, tapped and

plugged " BSP or NPT. Having either a BDV1 or BDV2 fitted will aid the removal of debris from the inside of the strainer screen. This

should be carried out periodically depending on the cleanliness of the system.

How to order

The UTD30 is supplied in two parts:-

PC10HP

1.

The swivel

PC3 _

pipeline connector

PC4 _

Standard connection

+ 1 integral ISO valve

+ 2 integral ISO valves

2. The UTD30 trap complete with inner and outer gaskets and two connector screws.

Available as follows: UTD30L, UTD30H, UTD30LA or UTD30HA. Items will be supplied in a protective box.

Note: Any optional extras need to be specified at the time of order placement.

How to order example:

1 off Spirax Sarco DN20 PC10HP swivel pipeline connector with socket weld connections.

1 off Spirax Sarco UTD30LA thermodynamic steam trap fitted with an anti-air-binding disc and BDV1 integral blowdown valve. The unit

is supplied complete with connector screws and gaskets.

1 off Insulating cover to fit a UTD30LA.

TI-P154-01 ST Issue 10

Page 3 of 4

UTD30L, UTD30LA, UTD30H and UTD30HA Thermodynamic Steam Traps with Swivel Connector

5.9.22

C

o

n

d

e

n

s

a

t

e

k

g

/

h

UTD30 and UTD30HA

UTD30L and UTD30LA
