Steam traps

Swivel connectors and traps

Dimensions/weight (approximate) in mm and kg

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P127-02) supplied with the product.

Installation note:

The UBP32 can be installed on any pipeline connector in any plane.

Disposal

This product is recyclable. No ecological hazard is anticipated

with the disposal of this product providing due care is taken.

Spare parts

The UBP32 is a sealed non-maintainable trap unit. No internal

spares are available.

The spares which are available are shown in solid outline. Parts

shown in a broken line are not available as spares.

Available spares

Connector screws

10

Complete UBP32 trap unit

inclusive of gaskets and connector screws (10)

How to order spares

Always order spare parts by using the description given in the

column headed 'Available spares' and state the size, Model No.

and pressure rating of the trap.

Example: 2 - Connector screws for a UBP32 sealed balanced

pressure thermostatic steam trap.

10

UBP32 trap unit and gaskets

A

B

35

33

A

D

C

68

D

42.5

Weight

(trap unit only)

0.43

B

C

Capacities

�����

���

���

���

���

���

��� ���

�

�

� � �

��

�� ��

Differential pressure bar (x 100 = kPa)

Hot water capacity

Cold water capacity

How to specify

Steam traps shall be of the sealed balanced pressure thermostatic

UBP32 type manufactured in stainless steel and be suitable for

operating pressures up to 32 bar g. Traps to be zero maintenance

and be connected to separate pipeline connectors by two screws

to allow for quick and simple installation/replacement. The

thermostatic capsule is to operate at 12°C/22°C/4°C below steam

temperature depending on the capsule selected. Traps can be

installed in any plane.

How to order The UBP32 is supplied in two parts:-

PC1_ Standard connection

1. The swivel pipeline connector PC3_ One integral ISO valve

PC4_ Two integral ISO valves

2. The UBP32 trap complete with inner and outer gaskets

(securely crimped in place) and two connector screws.

All items will be supplied in a protective box.

How to order example:

1 off Spirax Sarco DN20 PC10 swivel pipeline connector

with socket weld connections.

1 off Spirax Sarco UBP32 sealed balanced pressure

thermostatic steam trap fitted with an STD capsule.

Recommended tightening torques

Item

10

N m

30 - 35

(Ibf ft)

(22 - 26)

or

mm

9

/

16

"

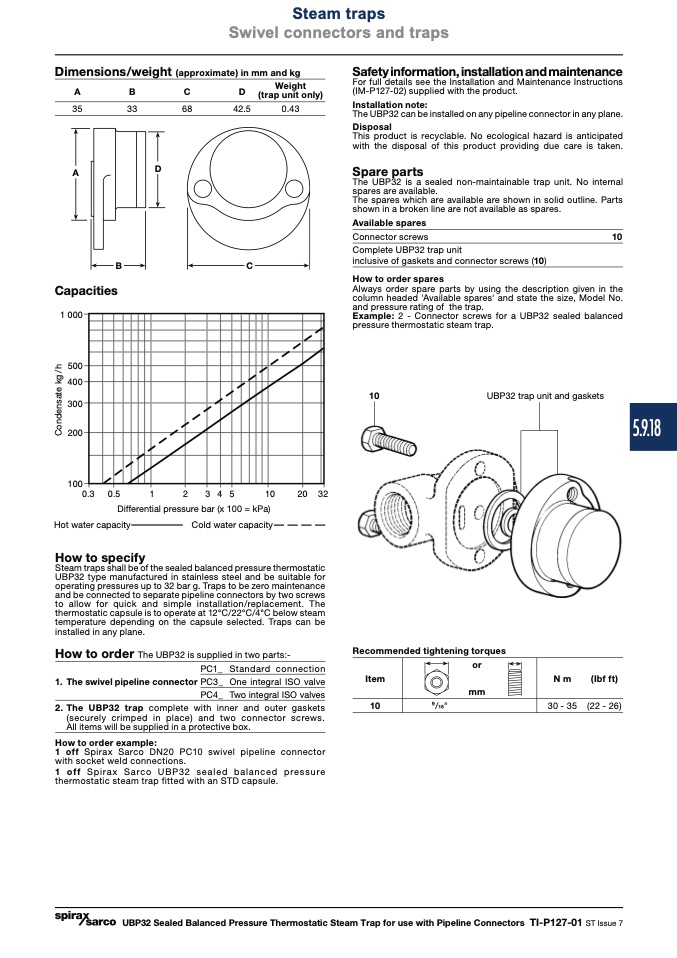

UBP32 Sealed Balanced Pressure Thermostatic Steam Trap for use with Pipeline Connectors TI-P127-01 ST Issue 7

5.9.18
