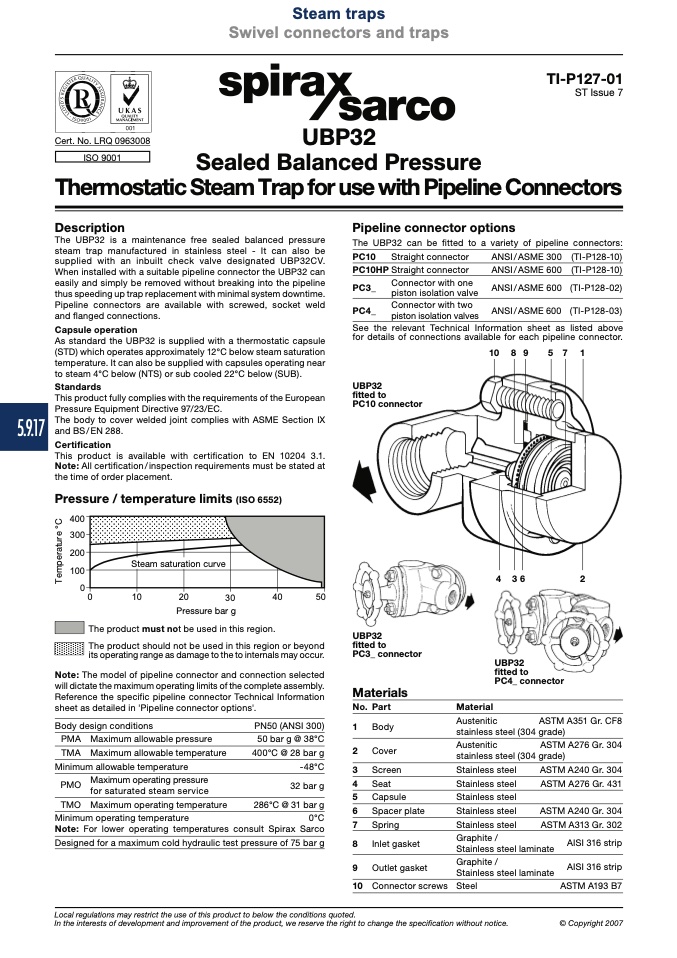

UBP32

Sealed Balanced Pressure

Thermostatic Steam Trap for use with Pipeline Connectors

Description

The UBP32 is a maintenance free sealed balanced pressure

steam trap manufactured in stainless steel - It can also be

supplied with an inbuilt check valve designated UBP32CV.

When installed with a suitable pipeline connector the UBP32 can

easily and simply be removed without breaking into the pipeline

thus speeding up trap replacement with minimal system downtime.

Pipeline connectors are available with screwed, socket weld

and flanged connections.

Capsule operation

As standard the UBP32 is supplied with a thermostatic capsule

(STD) which operates approximately 12°C below steam saturation

temperature. It can also be supplied with capsules operating near

to steam 4°C below (NTS) or sub cooled 22°C below (SUB).

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

The body to cover welded joint complies with ASME Section IX

and BS/EN 288.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Pressure / temperature limits (ISO 6552)

���

���

���

���

�

Note: The model of pipeline connector and connection selected

will dictate the maximum operating limits of the complete assembly.

Reference the specific pipeline connector Technical Information

sheet as detailed in 'Pipeline connector options'.

Pipeline connector options

The UBP32 can be fitted to a variety of pipeline connectors:

PC10

Straight connector

PC10HP Straight connector

PC3_

Connector with one

piston isolation valve

PC4_

Connector with two

piston isolation valves

ANSI/ASME 300

ANSI / ASME 600

ANSI/ASME 600

ANSI / ASME 600

(TI-P128-10)

(TI-P128-10)

(TI-P128-02)

(TI-P128-03)

See the relevant Technical Information sheet as listed above

for details of connections available for each pipeline connector.

1

0

89

5

7

1

UBP32

fitted to

PC10 connector

�

��

��

��

��

��

Pressure bar g

The product must not be used in this region.

The product should not be used in this region or beyond

its operating range as damage to the to internals may occur.

UBP32

fitted to

PC3_ connector

Materials

No. Part

1

Body

2

Cover

3

Screen

4

Seat

5

Capsule

6

Spacer plate

7

Spring

8

Inlet gasket

9

Outlet gasket

10 Connector screws

4

3

6

2

UBP32

fitted to

PC4_ connector

Austenitic

stainless steel (304 grade)

Austenitic

ASTM

stainless steel (304 grade)

Material

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

PN50 (ANSI 300)

50 bar g @ 38°C

400°C @ 28 bar g

-48°C

32 bar g

286°C @ 31 bar g

ASTM A351 Gr. CF8

A276 Gr. 304

0°C

Note: For lower operating temperatures consult Spirax Sarco

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Graphite /

Stainless steel

Graphite /

Stainless steel

Steel

ASTM A240 Gr. 304

ASTM A276 Gr. 431

ASTM A240 Gr. 304

ASTM A313 Gr. 302

AISI 316 strip

AISI 316 strip

ASTM A193 B7

© Copyright 2007

Designed for a maximum cold hydraulic test pressure of 75 bar g

laminate

laminate

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
