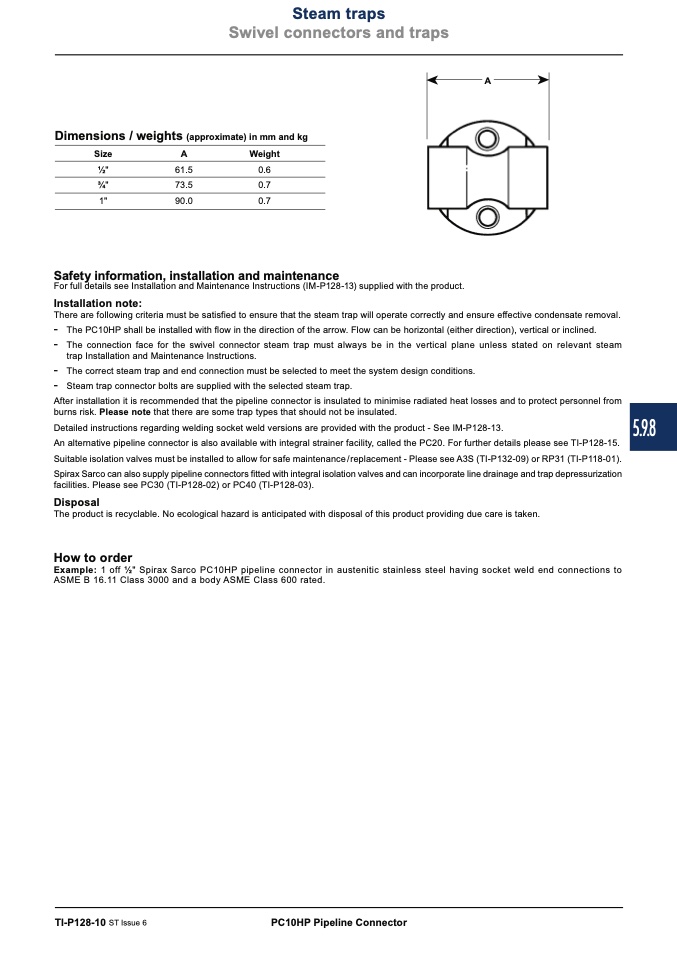

Spirax Sarco - Catalogo Agosto 2017

Steam traps

Swivel connectors and traps

ä

Dimensions / weights (approximate) in mm and kg

Size

Weight

1⁄2"

61.5

0.6

3⁄4"

73.5

0.7

90.0

0.7

Safety information, installation and maintenance

For full details see Installation and Maintenance Instructions (IM-P128-13) supplied with the product.

Installation note:

There are following criteria must be satisfied to ensure that the steam trap will operate correctly and ensure effective condensate removal.

- The PC10HP shall be installed with flow in the direction of the arrow. Flow can be horizontal (either direction), vertical or inclined.

- The connection face for the swivel connector steam trap must always be in the vertical plane unless stated on relevant steam

trap Installation and Maintenance Instructions.

- The correct steam trap and end connection must be selected to meet the system design conditions.

- Steam trap connector bolts are supplied with the selected steam trap.

After installation it is recommended that the pipeline connector is insulated to minimise radiated heat losses and to protect personnel from

burns risk. Please note that there are some trap types that should not be insulated.

Detailed instructions regarding welding socket weld versions are provided with the product - See IM-P128-13.

An alternative pipeline connector is also available with integral strainer facility, called the PC20. For further details please see TI-P128-15.

Suitable isolation valves must be installed to allow for safe maintenance / replacement - Please see A3S (TI-P132-09) or RP31 (TI-P118-01).

Spirax Sarco can also supply pipeline connectors fitted with integral isolation valves and can incorporate line drainage and trap depressurization

facilities. Please see PC30 (TI-P128-02) or PC40 (TI-P128-03).

Disposal

The product is recyclable. No ecological hazard is anticipated with disposal of this product providing due care is taken.

How to order

Example: 1 off 1⁄2" Spirax Sarco PC10HP pipeline connector in austenitic stainless steel having socket weld end connections to

ASME B 16.11 Class 3000 and a body ASME Class 600 rated.
