Steam traps

Swivel connectors and traps

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

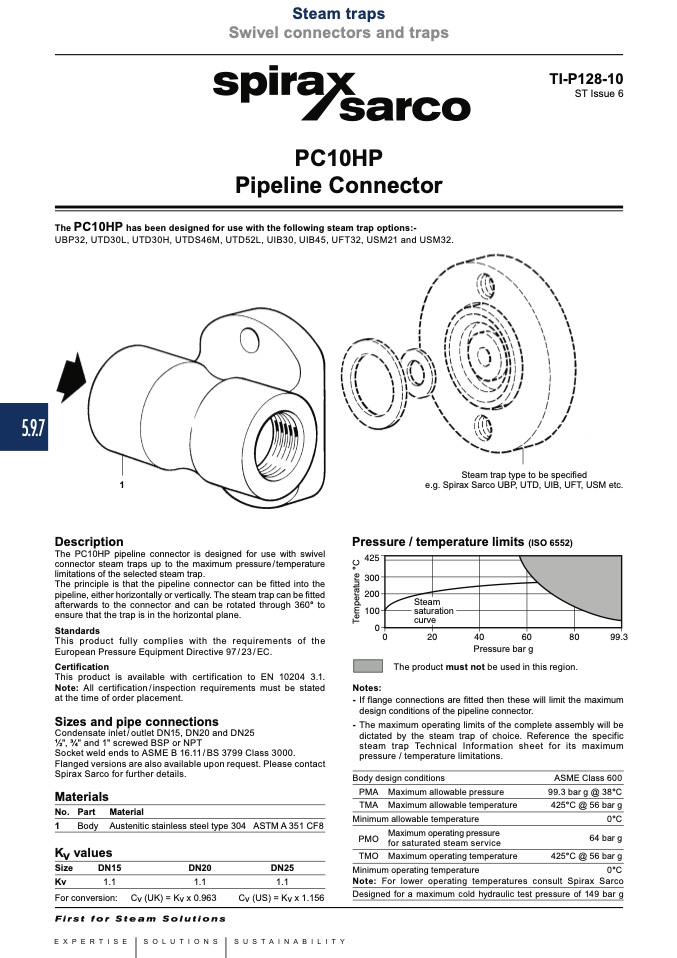

TI-P128-10

ST Issue 6

PC10HP

Pipeline Connector

The

PC10HP has been designed for use with the following steam trap options:-

UBP32, UTD30L, UTD30H, UTDS46M, UTD52L, UIB30, UIB45, UFT32, USM21 and USM32.

Description

The PC10HP pipeline connector is designed for use with swivel

connector steam traps up to the maximum pressure/temperature

limitations of the selected steam trap.

The principle is that the pipeline connector can be fitted into the

pipeline, either horizontally or vertically. The steam trap can be fitted

afterwards to the connector and can be rotated through 360° to

ensure that the trap is in the horizontal plane.

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97 / 23 / EC.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Sizes and pipe connections

Condensate inlet / outlet DN15, DN20 and DN25

1⁄2", 3⁄4" and 1" screwed BSP or NPT

Socket weld ends to ASME B 16.11 / BS 3799 Class 3000.

Flanged versions are also available upon request. Please contact

Spirax Sarco for further details.

Steam trap type to be specified

e.g. Spirax Sarco UBP, UTD, UIB, UFT, USM etc.

Pressure / temperature limits (ISO 6552)

��

Pressure bar g

��

The product must not be used in this region.

Notes:

- If flange connections are fitted then these will limit the maximum

design conditions of the pipeline connector.

- The maximum operating limits of the complete assembly will be

dictated by the steam trap of choice. Reference the specific

steam trap Technical Information sheet for its maximum

pressure / temperature limitations.

Materials

No. Part Material

Body Austenitic stainless steel type 304

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

ASME Class 600

99.3 bar g @ 38°C

425°C @ 56 bar g

0°C

64 bar g

425°C @ 56 bar g

K values

v

Size

DN15

1.1

For conversion:

DN20

1.1

Cv (UK) = Kv x 0.963

ASTM A 351 CF8

DN25

1.1

Cv (US) = Kv x 1.156

0°C

Note: For lower operating temperatures consult Spirax Sarco

Designed for a maximum cold hydraulic test pressure of 149 bar g
