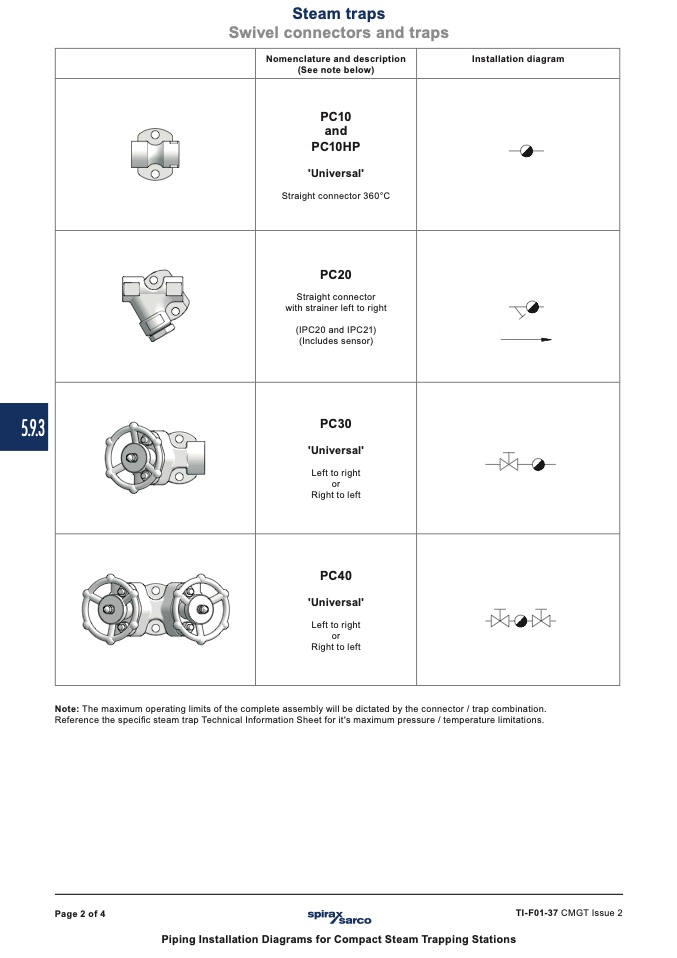

5.9.3

Steam traps

Swivel connectors and traps

Nomenclature and description

(See note below)

PC10

and

PC10HP

'Universal'

Straight connector 360°C

PC20

Straight connector

with strainer left to right

(IPC20 and IPC21)

(Includes sensor)

PC30

'Universal'

Left to right

or

Right to left

PC40

'Universal'

Left to right

or

Right to left

Installation diagram

Note: The maximum operating limits of the complete assembly will be dictated by the connector / trap combination.

Reference the specific steam trap Technical Information Sheet for it's maximum pressure / temperature limitations.

Page 2 of 4

TI-F01-37 CMGT Issue 2

Piping Installation Diagrams for Compact Steam Trapping Stations
