Dimensions/weights (approximate) in mm and kg

ANSI ANSI JIS/KS

600 300

40K

Size

A

B

B

B

C

D

E

F Weight

Spare parts

The spare parts available are shown in solid outline. Parts shown

in broken line are not supplied as spares.

DN15 87 147 135

146 92

72

40

30

DN20 87 151 138

146 92

72

40

30

DN25 87 160 147

156 92

72

40

30

8.5

8.5

9.1

Available spares

Insulating cover

Set of cover studs and nuts (set of 8)

Seat and disc assembly

Strainer screen 100 mesh

Set of gaskets (packet of 3 sets)

Cover gaskets (3 off)

How to order spares

5

8, 8A, 9

6, 7, 10, 13, 14, 15

4

10, 13, 14

10

F Withdrawal distance

A

D

E Withdrawal distance

Capacities

���

���

���

���

���

��

��

��

C

B

5

9

6

10

5.7.46

7 + 15

14

13

8

��

���

�

�

�

�

��

�

�

��������

Minimum operating pressure 8 bar for the TD62LM

Differential pressure bar (x 100 = kPa)

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P068-58) supplied with the product.

Installation note:

Preferably install in horizontal pipelines with the insulating cover

uppermost although it can be fitted in other positions.

After 24 hours in service the cover nuts should be checked for

tightness.

Disposal

The product is recyclable no ecological hazard is anitcipated with

the disposal of this product, providing due care is taken.

How to order

Example: 1 off Spirax Sarco DN20 TD62LM thermodynamic steam

trap with ASTM steel body having an integral strainer having a

replaceable seat and flanged ANSI 600 connections suitable for

steam mains drainage. An aluminium insulating cover shall be fitted

as standard.

8A

4

10

9

Steam traps

Thermodynamic

�����

������

C

o

n

d

e

n

s

a

t

e

k

g

/

h

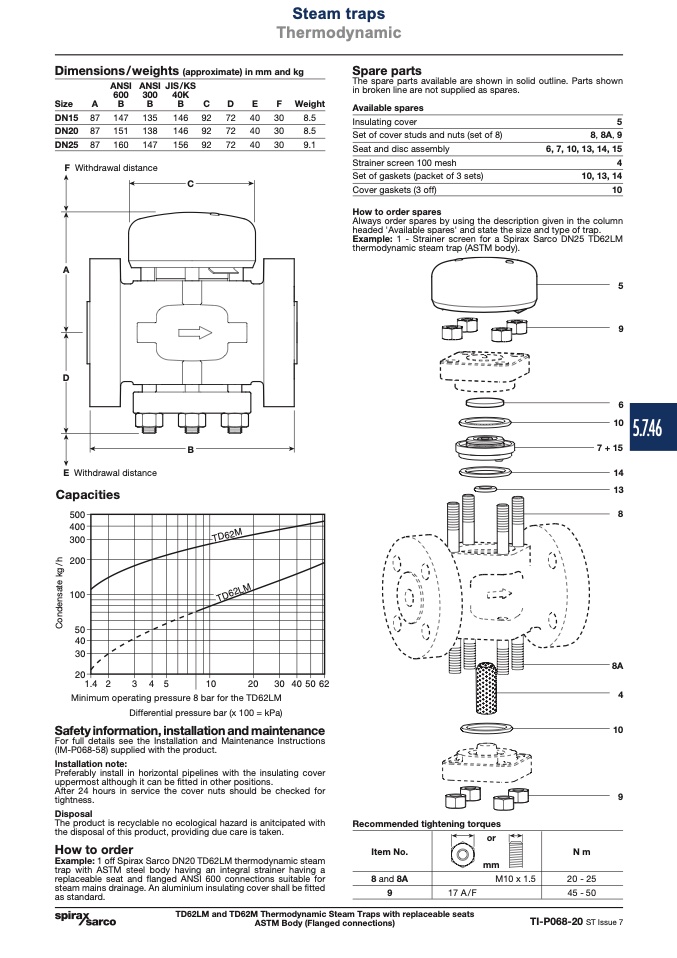

TD62LM and TD62M Thermodynamic Steam Traps with replaceable seats

ASTM Body (Flanged connections)

TI-P068-20 ST Issue 7

Always order spares by using the description given in the column

headed 'Available spares' and state the size and type of trap.

Example: 1 - Strainer screen for a Spirax Sarco DN25 TD62LM

thermodynamic steam trap (ASTM body).

Recommended tightening torques

or

Item No.

8 and 8A

9

mm

M10 x 1.5

N m

20 - 25

45 - 50

17 A/F
