Steam traps

Thermodynamic

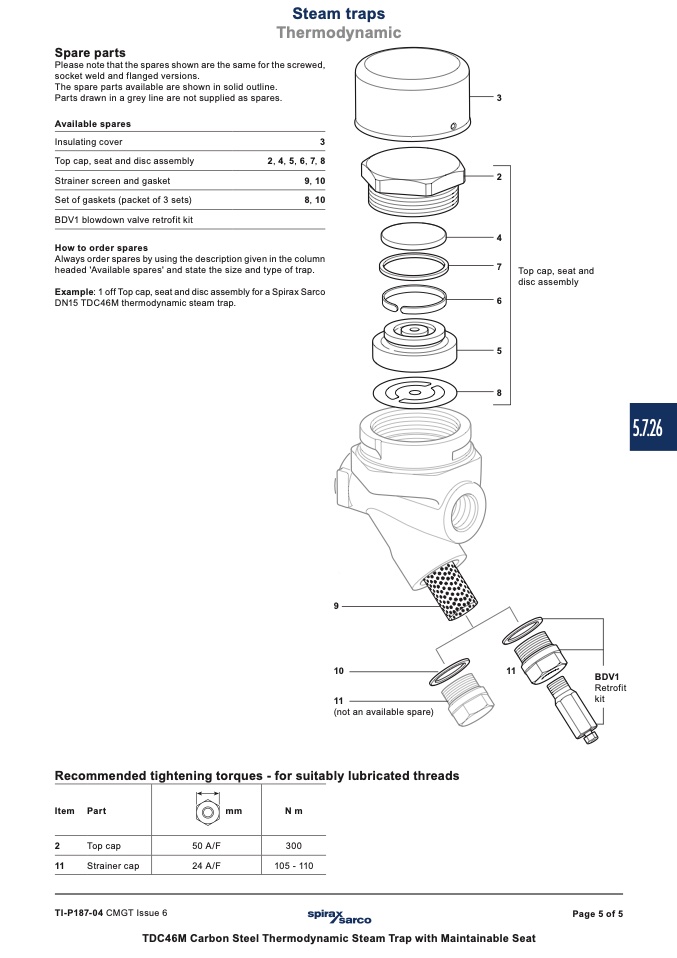

Spare parts

Please note that the spares shown are the same for the screwed,

socket weld and flanged versions.

The spare parts available are shown in solid outline.

Parts drawn in a grey line are not supplied as spares.

3

Available spares

Insulating cover

Top cap, seat and disc assembly

Strainer screen and gasket

Set of gaskets (packet of 3 sets)

BDV1 blowdown valve retrofit kit

How to order spares

3

2, 4, 5, 6, 7, 8

9, 10

8, 10

2

4

7

6

5

8

Always order spares by using the description given in the column

headed 'Available spares' and state the size and type of trap.

Example: 1 off Top cap, seat and disc assembly for a Spirax Sarco

DN15 TDC46M thermodynamic steam trap.

Top cap, seat and

disc assembly

9

10

11

(not an available spare)

Recommended tightening torques - for suitably lubricated threads

11

BDV1

Retrofit

kit

mm

50 A/F

24 A/F

Item Part

2

Top cap

11

Strainer cap

Nm

300

105 - 110

TI-P187-04 CMGT Issue 6

TDC46M Carbon Steel Thermodynamic Steam Trap with Maintainable Seat

Page 5 of 5

5.7.26
