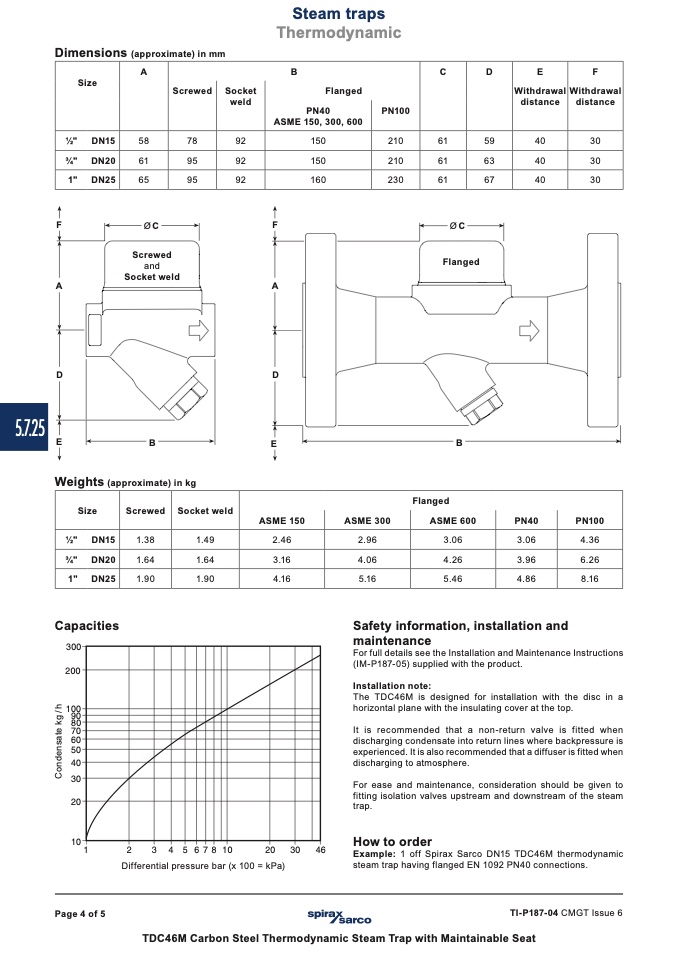

Steam traps

Thermodynamic

Size

A

B

Screwed Socket

Flanged

weld

ASME 150, 300, 600

PN40

PN100

C D E

Withdrawal

distance

F

Withdrawal

distance

1⁄2" DN15

58 78 92

150

210

61 59 40 30

3⁄4" DN20

61 95 92

150

210

61 63 40 30

1" DN25 65 95 92

160

230 61 67 40 30

5.7.25

Size

Screwed Socket weld

Flanged

ASME 150

ASME 300

ASME 600

PN40

PN100

1⁄2" DN15

1.38 1.49 2.46 2.96

3.06

3.06 4.36

3⁄4" DN20

1.64 1.64 3.16 4.06

4.26

3.96 6.26

1" DN25 1.90 1.90 4.16 5.16

5.46 4.86 8.16

Dimensions (approximate) in mm

F

Ø

C

F

ØC

Screwed

and

A

Socket weld

A

D

D

Flanged

E

B

E

B

Weights (approximate) in kg

Capacities

������

������

������

����

����

����

����

����

����

����

����

����

��

�

�

�

�

��������������

���

�

���

�

����

Differential pressure bar (x 100 = kPa)

Safety information, installation and

maintenance

For full details see the Installation and Maintenance Instructions

(IM-P187-05) supplied with the product.

Installation note:

The TDC46M is designed for installation with the disc in a

horizontal plane with the insulating cover at the top.

It is recommended that a non-return valve is fitted when

discharging condensate into return lines where backpressure is

experienced. It is also recommended that a diffuser is fitted when

discharging to atmosphere.

For ease and maintenance, consideration should be given to

fitting isolation valves upstream and downstream of the steam

trap.

How to order

Example: 1 off Spirax Sarco DN15 TDC46M thermodynamic

steam trap having flanged EN 1092 PN40 connections.

Page 4 of 5

TI-P187-04 CMGT Issue 6

TDC46M Carbon Steel Thermodynamic Steam Trap with Maintainable Seat

C

o

n

d

e

n

s

a

t

e

k

g

/

h
