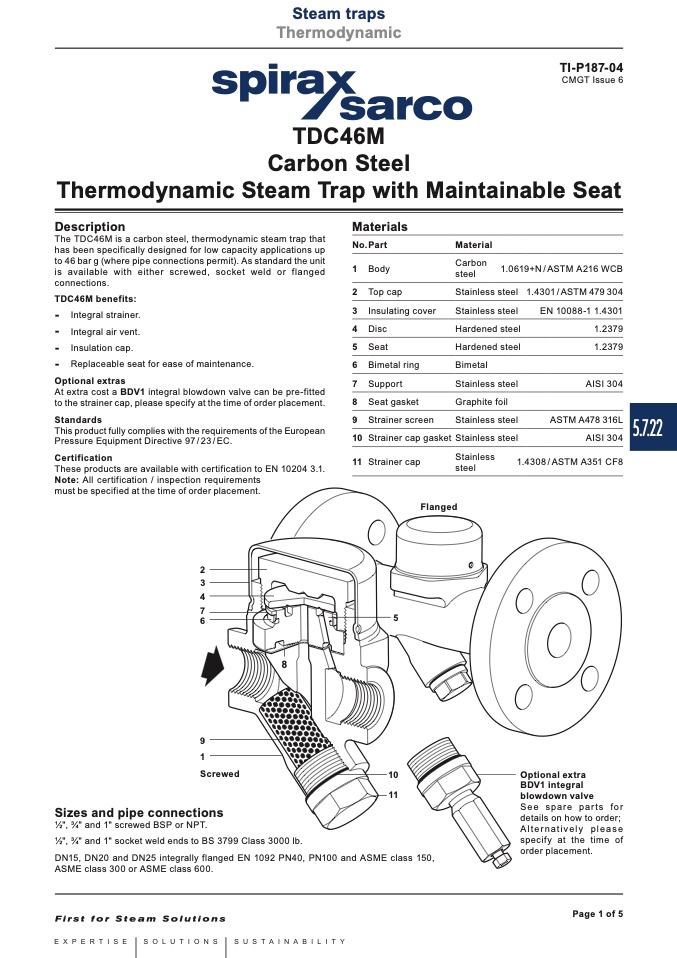

Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

Thermodynamic

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

TI-P187-04

CMGT Issue 6

TDC46M

Carbon Steel

Thermodynamic Steam Trap with Maintainable Seat

Description

Materials

The TDC46M is a carbon steel, thermodynamic steam trap that

has been specifically designed for low capacity applications up

to 46 bar g (where pipe connections permit). As standard the unit

is available with either screwed, socket weld or flanged

connections.

TDC46M benefits:

-

Integral strainer.

-

Integral air vent.

-

Insulation cap.

-

Replaceable seat for ease of maintenance.

Optional extras

At extra cost a BDV1 integral blowdown valve can be pre-fitted

to the strainer cap, please specify at the time of order placement.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97 / 23 / EC.

Certification

These products are available with certification to EN 10204 3.1.

Note: All certification / inspection requirements

must be specified at the time of order placement.

No.Part

1 Body

2 Top cap

3 Insulating cover

4 Disc

5 Seat

6 Bimetal ring

7 Support

8 Seat gasket

9 Strainer screen

10 Strainer cap gasket

Material

Carbon

1.0619+N / ASTM A216 WCB

steel

Stainless steel

Stainless steel

Hardened steel

Hardened steel

Bimetal

Stainless steel

Graphite foil

1.4301 / ASTM 479 304

EN 10088-1 1.4301

1.2379

1.2379

AISI 304

ASTM A478 316L

AISI 304

Stainless

Stainless

Stainless

steel

Flanged

5

steel

steel

11 Strainer cap

1.4308 / ASTM A351 CF8

2

3

4

7

6

9

8

1

Screwed

10

Optional extra

BDV1 integral

blowdown valve

See spare parts for

details on how to order;

Alternatively please

specify at the time of

order placement.

Sizes and pipe connections

1⁄2", 3⁄4" and 1" screwed BSP or NPT.

1⁄2", 3⁄4" and 1" socket weld ends to BS 3799 Class 3000 lb.

11

DN15, DN20 and DN25 integrally flanged EN 1092 PN40, PN100 and ASME class 150,

ASME class 300 or ASME class 600.

Page 1 of 5

5.7.22
