Capacities
Spare parts
The spare parts available are shown in solid outline. Parts drawn
in broken line are not supplied as spares.
����
���
���
���
���
���
��
Dimensions/weights (approximate) in mm and kg
Size
A
B
E
G
H
J
K
L Weight
3
/
8
"
41
78
55
85
41
57
57
38 0.75
1⁄2"LC 41
78
55
85
41
57
57
38 0.75
1⁄2"
41
78
55
85
41
57
57
38 0.80
3⁄4"
47
90
60 100
41
63
57
38 1.00
Available spares
Disc (packet of 3)
Strainer screen and gasket
Insulating cover
Strainer cap gasket (packet of 3)
How to order spares
3
4, 6
7
6
Steam traps
Thermodynamic
��
C
o
n
d
e
n
s
a
t
e
k
g
/
h
Always order spares by using the description given in the column
headed 'Available spares' and state the size and type of trap.
Example: 1 - Strainer screen and gasket for a Spirax Sarco 1⁄2" LC
TD42 thermodynamic steam trap.
��
������������
��
�
�
�
�
��
��
�
�
����
Differential pressure bar (x 100 = kPa)
7
3
5.7.14
H
Withdrawal distance
for screen
A
E
B
K
Withdrawal distance for
L
insulating cover
J
Safety information, installation and maintenance
For full details see the Installation and Maintenance Instructions
(IM-P068-24) supplied with the product.
Installation note:
The TD42 is designed for installation with the capsule in a
horizontal plane with the cover at the top.
It is recommended that a non-return valve is fitted when discharging
condensate into return lines where backpressure is experienced. It
is also recommended that a diffuser is fitted when discharging to
atmosphere.
For ease and maintenance, consideration should be given to fitting
isolation valves upstream and downstream of the steam trap.
5
Recommended tightening torques
Disposal
The product is recyclable. No ecological hazard is anticipated
Item
with the disposal of this product, providing due care is taken.
or
mm
N m
135 - 150
180 - 200
170 - 190
How to order
Example: 1 off 1⁄2" Spirax Sarco TD42 thermodynamic steam trap
having screwed BSP connections.
2
5
(TD42LC)
36
(TD42)
41
32
M28
Withdrawal
G
distance for cap
4
6

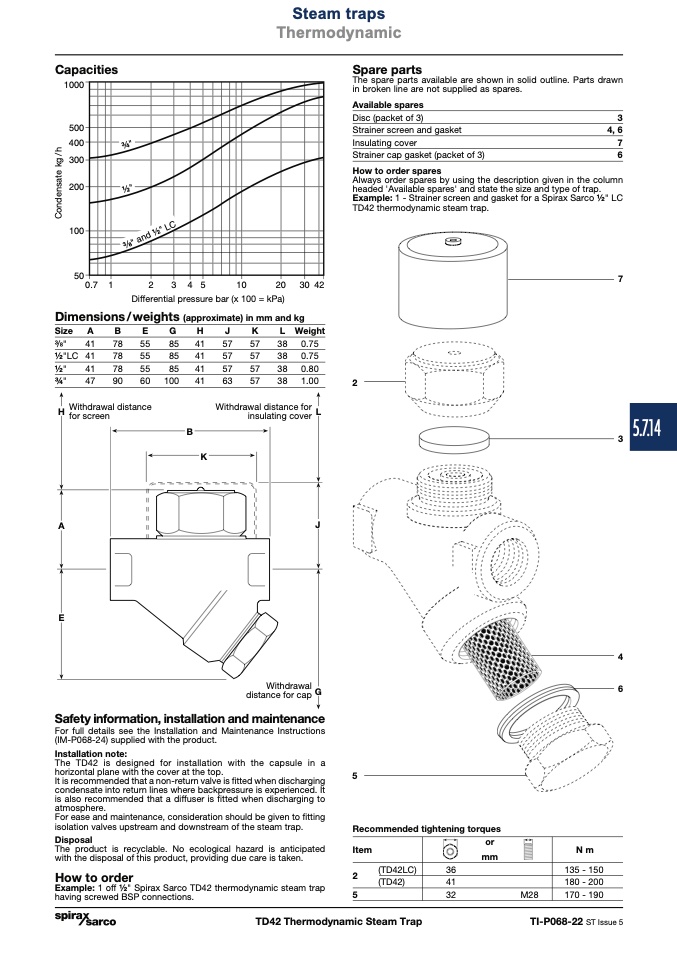

TD42 Thermodynamic Steam Trap
TI-P068-22 ST Issue 5
