Description

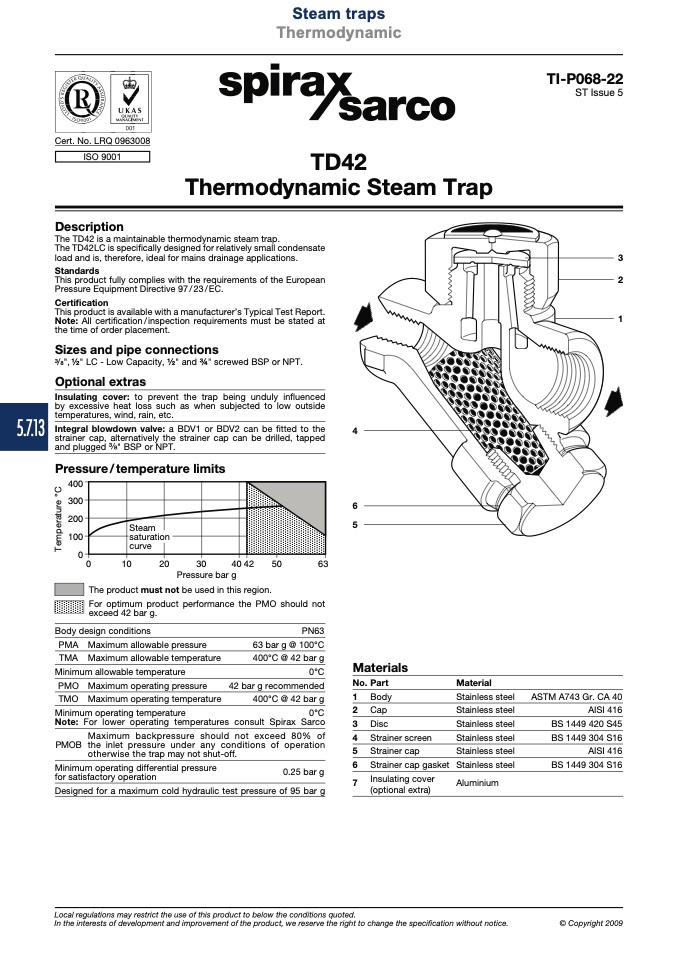

The TD42 is a maintainable thermodynamic steam trap.

The TD42LC is specifically designed for relatively small condensate

load and is, therefore, ideal for mains drainage applications.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Certification

This product is available with a manufacturer’s Typical Test Report.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

3

/

8

", 1⁄2" LC - Low Capacity, 1⁄2" and 3⁄4" screwed BSP or NPT.

Optional extras

Insulating cover: to prevent the trap being unduly influenced

by excessive heat loss such as when subjected to low outside

5.7.13

temperatures, wind, rain, etc.

Integral blowdown valve: a BDV1 or BDV2 can be fitted to the

strainer cap, alternatively the strainer cap can be drilled, tapped

and plugged " BSP or NPT.

3

2

1

Pressure/temperature limits

���

���

���

���

4

6

5

Materials

No. Part

1 Body

2 Cap

3 Disc

4 Strainer screen

5 Strainer cap

6 Strainer cap gasket

7

Insulating cover

(optional extra)

Steam

saturation

curve

Steam traps

Thermodynamic

TD42

Thermodynamic Steam Trap

TI-P068-22

ST Issue 5

�

�

��

��

��

����

��

��

Pressure bar g

The product must not be used in this region.

For optimum product performance the PMO should not

T

e

m

p

e

r

a

t

u

r

e

°

C

exceed 42 bar g.

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO Maximum operating pressure

TMO Maximum operating temperature

PN63

63 bar g @ 100°C

400°C @ 42 bar g

0°C

42 bar g recommended

400°C @ 42 bar g

Material

Stainless

Stainless

Stainless

Stainless

Stainless

Stainless

steel

steel

steel

steel

steel

steel

ASTM A743 Gr. CA 40

AISI 416

BS 1449 420 S45

BS 1449 304 S16

AISI 416

BS 1449 304 S16

0°C

Note: For lower operating temperatures consult Spirax Sarco

Minimum operating temperature

Maximum backpressure should not exceed 80% of

PMOB the inlet pressure under any conditions of operation

otherwise the trap may not shut-off.

Minimum operating differential pressure

0.25 bar g

for satisfactory operation

Designed for a maximum cold hydraulic test pressure of 95 bar g

Aluminium

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
