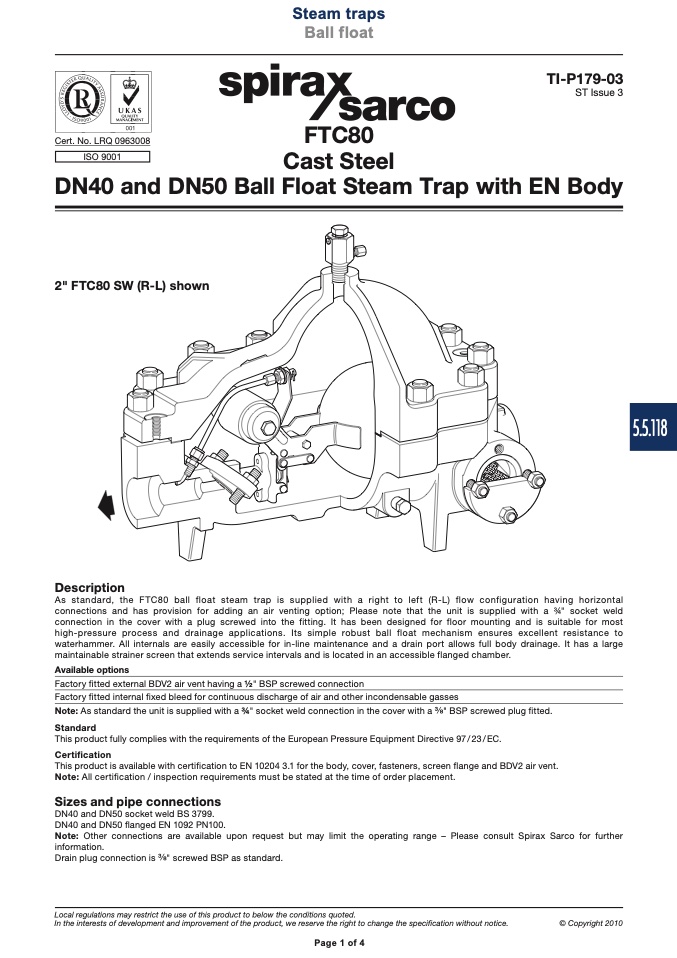

As standard, the FTC80 ball float steam trap is supplied with a right to left (R-L) flow configuration having horizontal

connections and has provision for adding an air venting option; Please note that the unit is supplied with a 3⁄4" socket weld

connection in the cover with a plug screwed into the fitting. It has been designed for floor mounting and is suitable for most

high-pressure process and drainage applications. Its simple robust ball float mechanism ensures excellent resistance to

waterhammer. All internals are easily accessible for in-line maintenance and a drain port allows full body drainage. It has a large

maintainable strainer screen that extends service intervals and is located in an accessible flanged chamber.

Available options

Factory fitted external BDV2 air vent having a 1⁄2" BSP screwed connection

Factory fitted internal fixed bleed for continuous discharge of air and other incondensable gasses

Note: As standard the unit is supplied with a 3⁄4" socket weld connection in the cover with a " BSP screwed plug fitted.

Standard

This product fully complies with the requirements of the European Pressure Equipment Directive 97 / 23 / EC.

Certification

This product is available with certification to EN 10204 3.1 for the body, cover, fasteners, screen flange and BDV2 air vent.

Note: All certification / inspection requirements must be stated at the time of order placement.

DN40 and DN50 socket weld BS 3799.

DN40 and DN50 flanged EN 1092 PN100.

Note: Other connections are available upon request but may limit the operating range – Please consult Spirax Sarco for further

information.

Drain plug connection is " screwed BSP as standard.

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
