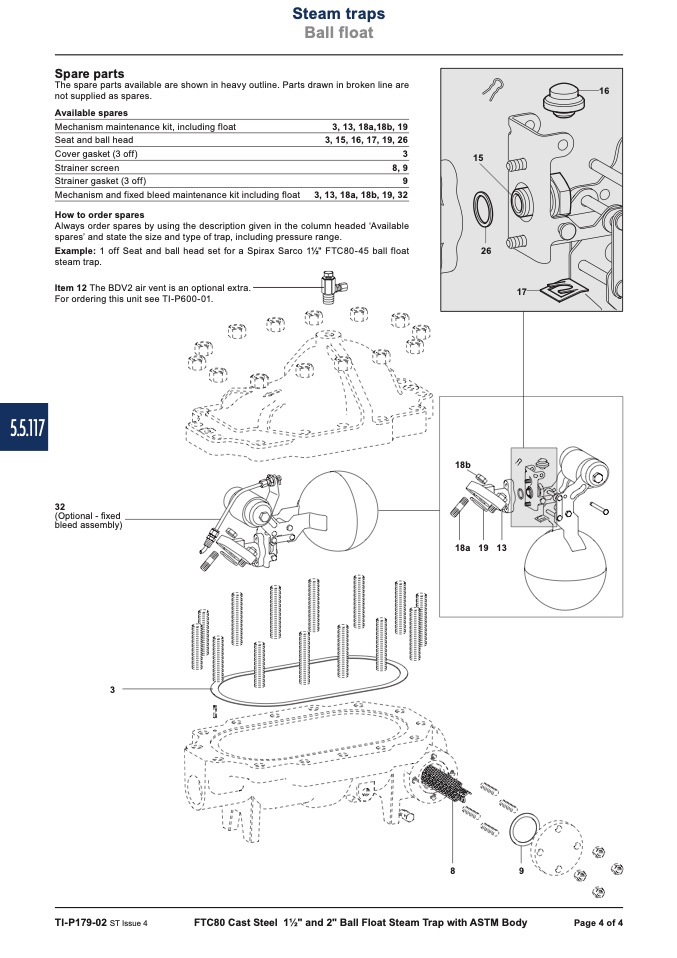

Spare parts

The spare parts available are shown in heavy outline. Parts drawn in broken line are

not supplied as spares.

16

Available spares

Mechanism maintenance kit, including float

Seat and ball head

Cover gasket (3 off)

Strainer screen

Strainer gasket (3 off)

Mechanism and fixed bleed maintenance kit including float

How to order spares

3, 13, 18a,18b, 19

3, 15, 16, 17, 19, 26

3

8, 9

9

3, 13, 18a, 18b, 19, 32

15

26

Always order spares by using the description given in the column headed ‘Available

spares’ and state the size and type of trap, including pressure range.

Example: 1 off Seat and ball head set for a Spirax Sarco 11⁄2" FTC80-45 ball float

steam trap.

Item 12 The BDV2 air vent is an optional extra.

For ordering this unit see TI-P600-01.

5.5.117

(Optional - fixed

bleed assembly)

17

32

TI-P179-02 ST Issue 4

FTC80 Cast Steel 11⁄2" and 2" Ball Float Steam Trap with ASTM Body

Page 4 of 4

3

Steam traps

Ball float

18b

18a 19 13

8

9
