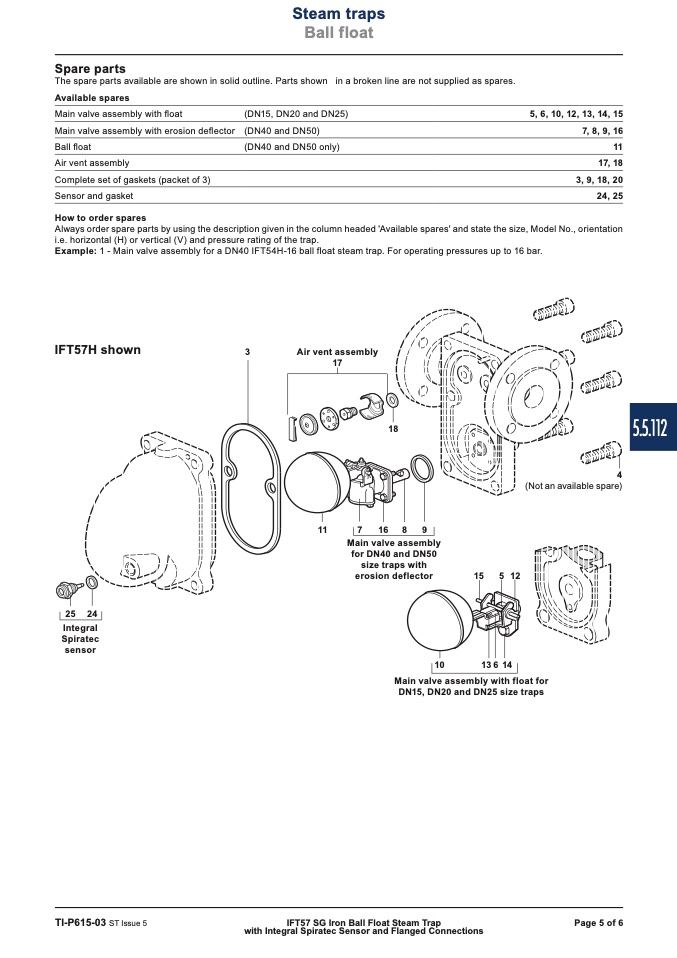

Spare parts

The spare parts available are shown in solid outline. Parts shown in a broken line are not supplied as spares.

Available spares

Main valve assembly with float

Main valve assembly with erosion deflector

Ball float

Air vent assembly

Complete set of gaskets (packet of 3)

Sensor and gasket

How to order spares

(DN15, DN20 and DN25)

(DN40 and DN50)

(DN40 and DN50 only)

5, 6, 10, 12, 13, 14, 15

7, 8, 9, 16

11

17, 18

3, 9, 18, 20

24, 25

25 24

Integral

Spiratec

sensor

15 5 12

13 6 14

TI-P615-03 ST Issue 5

IFT57 SG Iron Ball Float Steam Trap

with Integral Spiratec Sensor and Flanged Connections

Page 5 of 6

Steam traps

Ball float

Always order spare parts by using the description given in the column headed 'Available spares' and state the size, Model No., orientation

i.e. horizontal (H) or vertical (V) and pressure rating of the trap.

Example: 1 - Main valve assembly for a DN40 IFT54H-16 ball float steam trap. For operating pressures up to 16 bar.

IFT57H shown

3

Air vent assembly

17

11

18

7 16 8 9

Main valve assembly

for DN40 and DN50

size traps with

erosiondeflector

10

5.5.112

4

(Not an available spare)

Main valve assembly with float for

DN15, DN20 and DN25 size traps
