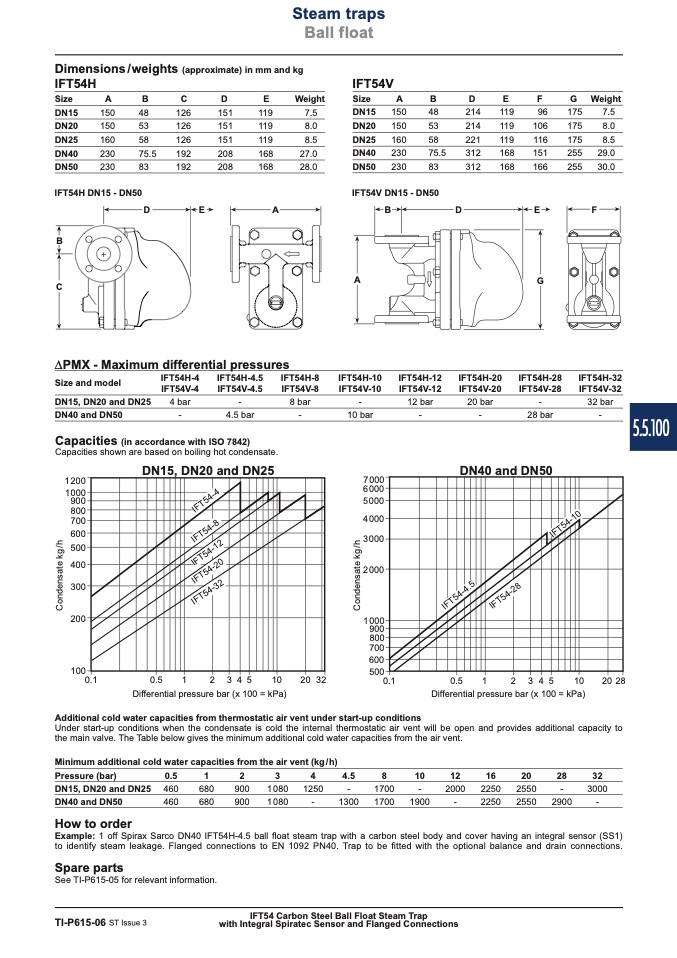

Steam traps
Ball float
Dimensions/weights (approximate) in mm and kg
IFT54H
Size
A
B
C
D
E
Weight
DN15
150
48
126
151
119
7.5
DN20
150
53
126
151
119
8.0
DN25
160
58
126
151
119
8.5
DN40
230
75.5
192
208
168
27.0
DN50
230
83
192
208
168
28.0
IFT54V
Size
A
B
D
E
F
G Weight
DN15 150
48
214
119
96
175
7.5
DN20 150
53
214
119
106
175
8.0
DN25 160
58
221
119
116
175
8.5
DN40 230
75.5
312
168
151
255 29.0
DN50 230
83
312
168
166
255 30.0
IFT54V DN15 - DN50
E
A
B
E
F
IFT54H DN15 - DN50
B
C
DPMX - Maximum differential pressures
IFT54H-4.5
IFT54V-4.5
-
4.5 bar
Capacities (in accordance with ISO 7842)
Capacities shown are based on boiling hot condensate.
A
G
Size and model
DN15, DN20 and DN25
4 bar
IFT54H-10
IFT54V-10
-
-
10 bar
-
IFT54V-4
DN40 and DN50
-
IFT54H-4
IFT54H-8
IFT54V-8
8 bar
IFT54H-12
IFT54V-12
12 bar
IFT54H-20
IFT54V-20
20 bar
-
IFT54H-28
IFT54V-28
-
28 bar
IFT54H-32
IFT54V-32
32 bar
-
�� ������
��������
������
������
������
������
������
������
������
������
������
������
������
��
�� ������
�� ������
�� ������
�� ������
�� ������
�� ������
�� ������
�� ������
������
������
������
������
������
����
��������
������
������
��
�� ������
����
��������
DN15, DN20 and DN25
DN40 and DN50
Differential pressure bar (x 100 = kPa)
Differential pressure bar (x 100 = kPa)
Additional cold water capacities from thermostatic air vent under start-up conditions
Under start-up conditions when the condensate is cold the internal thermostatic air vent will be open and provides additional capacity to
the main valve. The Table below gives the minimum additional cold water capacities from the air vent.
Minimum additional cold water capacities from the air vent (kg/h)
Pressure (bar)
DN15, DN20 and DN25
DN40 and DN50
0.5
1
2
3
4
4.5
8
10
12
16
20
28
32
460
680
900
1080 1250
-
1700
-
2000 2250 2550
-
3000
460
680
900
1 080
-
1300 1700 1900
-
2250 2550 2900
-
How to order
Example: 1 off Spirax Sarco DN40 IFT54H-4.5 ball
float steam trap with a carbon steel body and cover having an integral sensor (SS1)
to identify steam leakage. Flanged connections to EN 1092 PN40. Trap to be fitted with the optional balance and drain connections.
Spare parts
See TI-P615-05 for relevant information.
TI-P615-06 ST Issue 3
IFT54 Carbon Steel Ball Float Steam Trap
with Integral Spiratec Sensor and Flanged Connections
D
D
5.5.100
��������������
