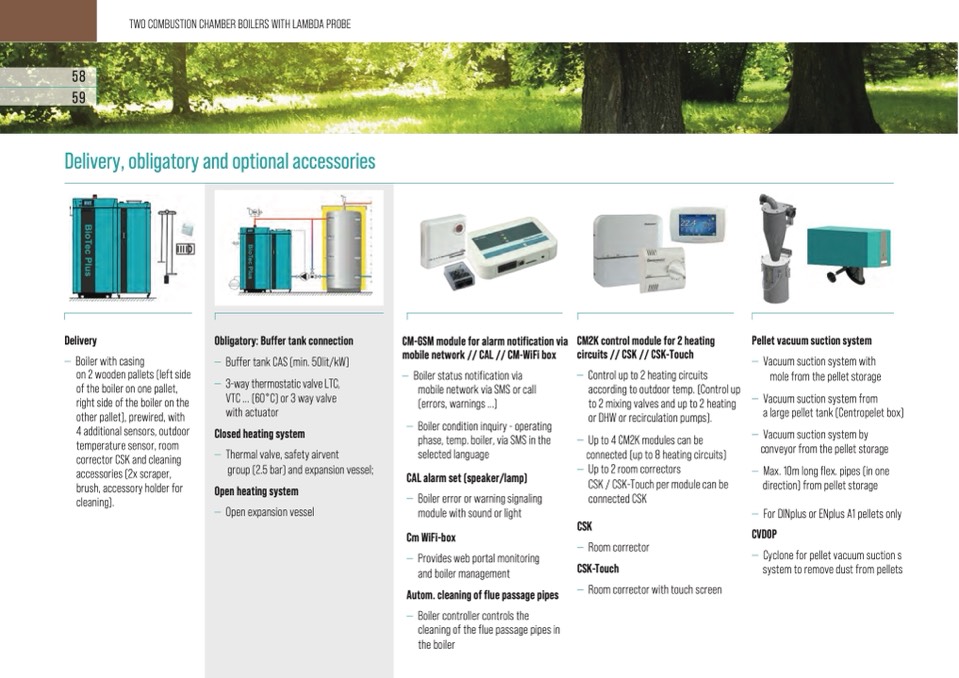

TWO COMBUSTION CHAMBER BOILERS WITH LAMBDA PROBE

58

59

Delivery, obligatory and optional accessories

Delivery

— Boiler with casing

on 2 wooden pallets (left side

of the boiler on one pallet,

right side of the boiler on the

other pallet), prewired, with

4 additional sensors, outdoor

temperature sensor, room

corrector CSK and cleaning

accessories (2x scraper,

brush, accessory holder for

cleaning).

CM-GSM module for alarm notification via

mobile network // CAL // CM-WiFi box

— Boiler status notification via

mobile network via SMS or call

(errors, warnings ...)

— Boiler condition inquiry - operating

phase, temp. boiler, via SMS in the

selected language

CAL alarm set (speaker/lamp)

— Boiler error or warning signaling

module with sound or light

Cm WiFi-box

— Provides web portal monitoring

and boiler management

Autom. cleaning of flue passage pipes

— Boiler controller controls the

cleaning of the flue passage pipes in

the boiler

CM2K control module for 2 heating

circuits // CSK // CSK-Touch

— Control up to 2 heating circuits

according to outdoor temp. (Control up

to 2 mixing valves and up to 2 heating

or DHW or recirculation pumps).

— Up to 4 CM2K modules can be

connected (up to 8 heating circuits)

— Up to 2 room correctors

CSK / CSK-Touch per module can be

connected CSK

CSK

— Room corrector

CSK-Touch

— Room corrector with touch screen

Pellet vacuum suction system

— Vacuum suction system with

mole from the pellet storage

— Vacuum suction system from

a large pellet tank (Centropelet box)

— Vacuum suction system by

conveyor from the pellet storage

— Max. 10m long flex. pipes (in one

direction) from pellet storage

— For DINplus or ENplus A1 pellets only

CVDOP

— Cyclone for pellet vacuum suction s

system to remove dust from pellets

Obligatory: Buffer tank connection

— Buffer tank CAS (min. 50lit/kW)

— 3-waythermostaticvalveLTC,

VTC ... (60°C) or 3 way valve

with actuator

Closed heating system

— Thermal valve, safety airvent

group (2.5 bar) and expansion vessel;

Open heating system

— Open expansion vessel
