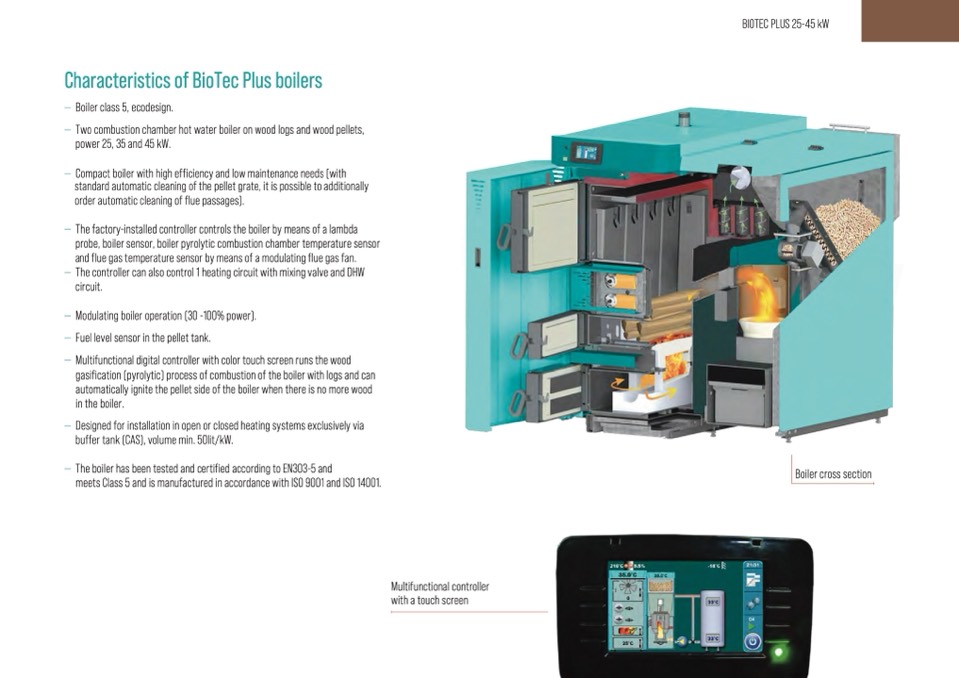

Characteristics of BioTec Plus boilers

— Boiler class 5, ecodesign.

— Two combustion chamber hot water boiler on wood logs and wood pellets,

power 25, 35 and 45 kW.

— Compactboilerwithhighefficiencyandlowmaintenanceneeds(with

standard automatic cleaning of the pellet grate, it is possible to additionally

order automatic cleaning of flue passages).

— The factory-installed controller controls the boiler by means of a lambda

probe, boiler sensor, boiler pyrolytic combustion chamber temperature sensor

and flue gas temperature sensor by means of a modulating flue gas fan.

— The controller can also control 1 heating circuit with mixing valve and DHW

circuit.

— Modulating boiler operation (30 -100% power).

— Fuel level sensor in the pellet tank.

— Multifunctional digital controller with color touch screen runs the wood

gasification (pyrolytic) process of combustion of the boiler with logs and can

automatically ignite the pellet side of the boiler when there is no more wood

in the boiler.

— Designed for installation in open or closed heating systems exclusively via

buffer tank (CAS), volume min. 50lit/kW.

— The boiler has been tested and certified according to EN303-5 and

meets Class 5 and is manufactured in accordance with ISO 9001 and ISO 14001.

Boiler cross section

BIOTEC PLUS 25-45 kW

Multifunctional controller

with a touch screen
