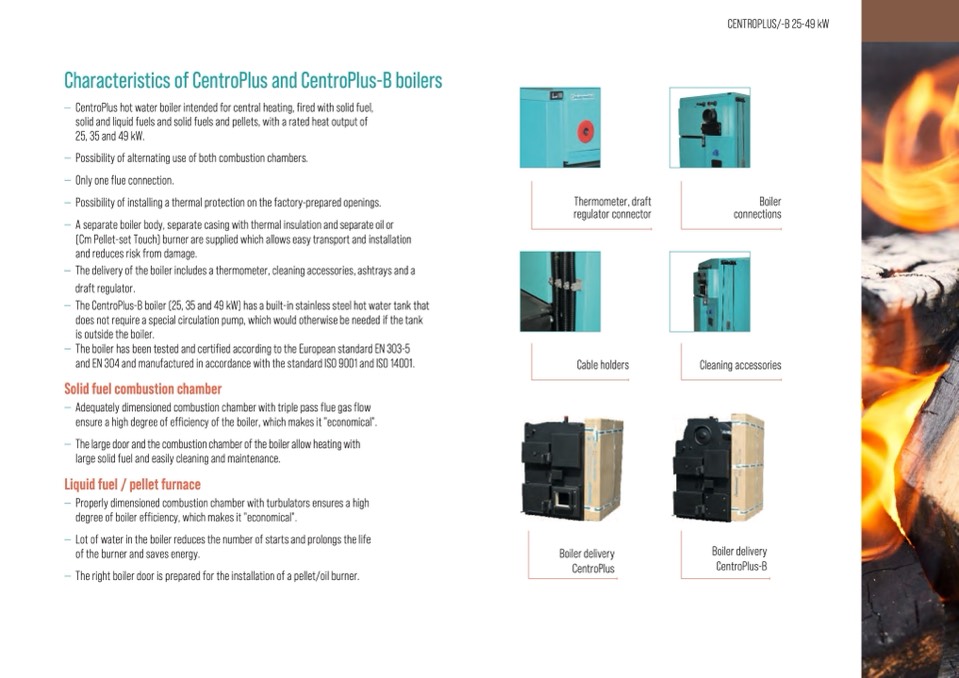

Characteristics of CentroPlus and CentroPlus-B boilers

— CentroPlus hot water boiler intended for central heating, fired with solid fuel,

solid and liquid fuels and solid fuels and pellets, with a rated heat output of

25, 35 and 49 kW.

— Possibility of alternating use of both combustion chambers.

— Only one flue connection.

— Possibility of installing a thermal protection on the factory-prepared openings.

— Aseparateboilerbody,separatecasingwiththermalinsulationandseparateoilor

(Cm Pellet-set Touch) burner are supplied which allows easy transport and installation

and reduces risk from damage.

— The delivery of the boiler includes a thermometer, cleaning accessories, ashtrays and a

draft regulator.

— TheCentroPlus-Bboiler(25,35and49kW)hasabuilt-instainlesssteelhotwatertankthat

does not require a special circulation pump, which would otherwise be needed if the tank

is outside the boiler.

— The boiler has been tested and certified according to the European standard EN 303-5

and EN 304 and manufactured in accordance with the standard ISO 9001 and ISO 14001.

Solid fuel combustion chamber

— Adequately dimensioned combustion chamber with triple pass flue gas flow

ensure a high degree of efficiency of the boiler, which makes it "economical".

— Thelargedoorandthecombustionchamberoftheboilerallowheatingwith

large solid fuel and easily cleaning and maintenance.

Liquid fuel / pellet furnace

— Properly dimensioned combustion chamber with turbulators ensures a high

degree of boiler efficiency, which makes it "economical".

— Lot of water in the boiler reduces the number of starts and prolongs the life

of the burner and saves energy.

— The right boiler door is prepared for the installation of a pellet/oil burner.

Thermometer, draft

regulator connector

Boiler

connections

CENTROPLUS/-B 25-49 kW

Cable holders

Cleaning accessories

Boiler delivery

CentroPlus

Boiler delivery

CentroPlus-B
