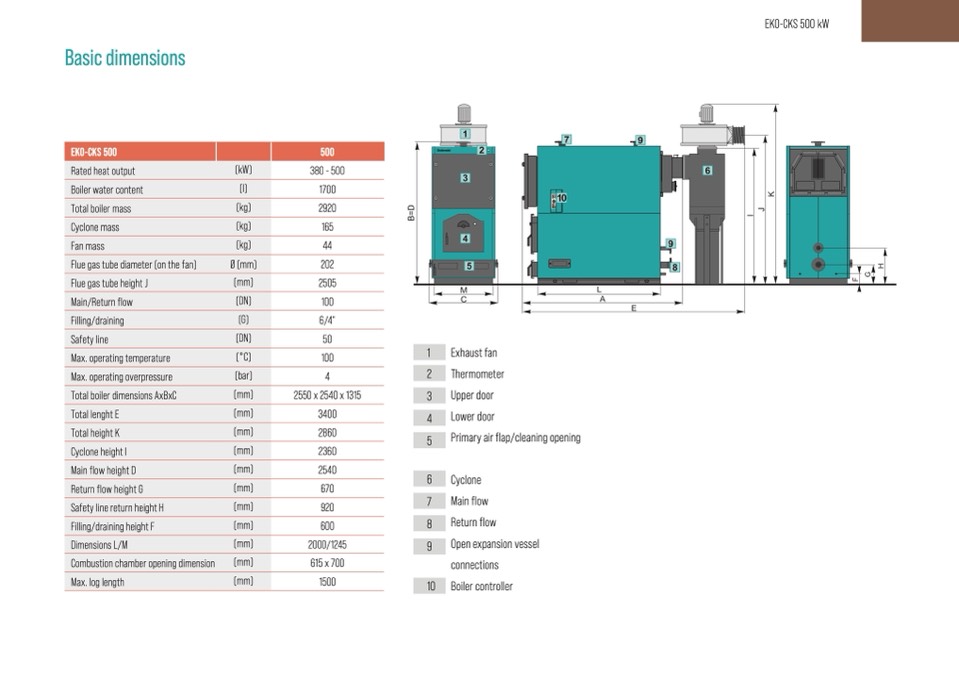

Basic dimensions
EKO-CKS 500
Rated heat output
Boiler water content
Total boiler mass
Cyclone mass
Fan mass
Flue gas tube diameter (on the fan)
Flue gas tube height J
Main/Return flow
Filling/draining
Safety line
Max. operating temperature
Max. operating overpressure
Total boiler dimensions AxBxC
Total lenght E
Total height K
Cyclone height I
Main flow height D
Return flow height G
Safety line return height H
Filling/draining height F
Dimensions L/M
Combustion chamber opening dimension
Max. log length
(kW)
(l)
(kg)
(kg)
(kg)
Ø (mm)
(mm)
(DN)
(G)
(DN)
(°C)
(bar)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
500
380 - 500
1700
2920
165
44
202
2505
100
6/4"
50
100
4
2550 x 2540 x 1315
3400
2860
2360
2540
670
920
1
Exhaust fan
2
Thermometer
3
Upper door
600
8
2000/1245
615 x 700
1500
Lower door
Primary air flap/cleaning opening
6
Cyclone
7
Main flow
4
5
Return flow
9
Open expansion vessel
connections
10 Boiler controller
EKO-CKS 500 kW
