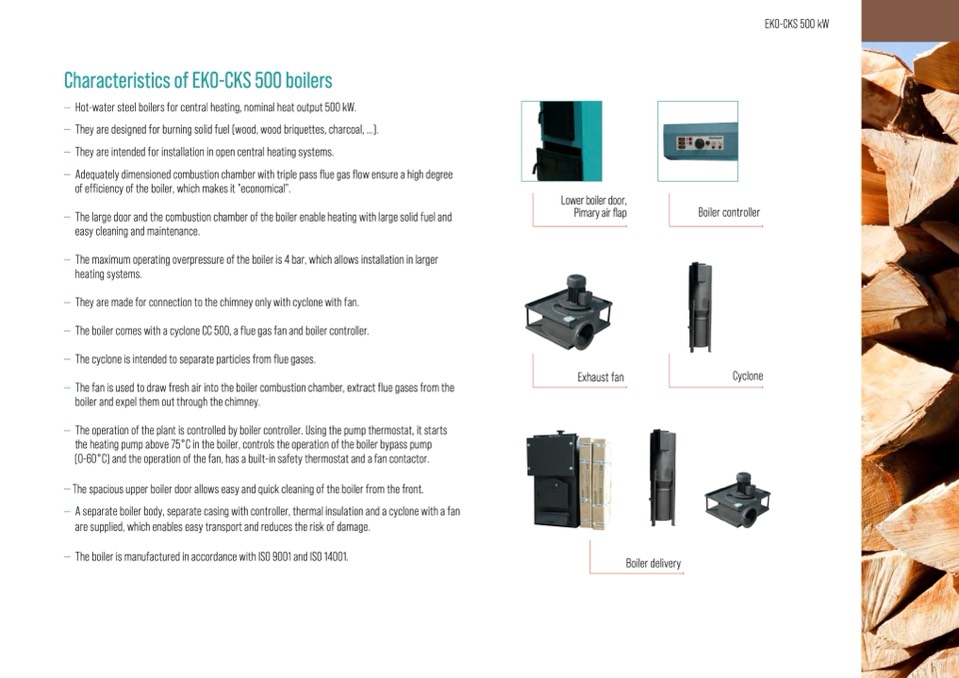

Characteristics of EKO-CKS 500 boilers

— Hot-water steel boilers for central heating, nominal heat output 500 kW.

— They are designed for burning solid fuel (wood, wood briquettes, charcoal, ...).

— They are intended for installation in open central heating systems.

— Adequately dimensioned combustion chamber with triple pass flue gas flow ensure a high degree

of efficiency of the boiler, which makes it "economical".

— The large door and the combustion chamber of the boiler enable heating with large solid fuel and

easy cleaning and maintenance.

— The maximum operating overpressure of the boiler is 4 bar, which allows installation in larger

heating systems.

— They are made for connection to the chimney only with cyclone with fan.

— The boiler comes with a cyclone CC 500, a flue gas fan and boiler controller.

— The cyclone is intended to separate particles from flue gases.

— The fan is used to draw fresh air into the boiler combustion chamber, extract flue gases from the

boiler and expel them out through the chimney.

— The operation of the plant is controlled by boiler controller. Using the pump thermostat, it starts

the heating pump above 75°C in the boiler, controls the operation of the boiler bypass pump

(0-60°C) and the operation of the fan, has a built-in safety thermostat and a fan contactor.

— The spacious upper boiler door allows easy and quick cleaning of the boiler from the front.

— A separate boiler body, separate casing with controller, thermal insulation and a cyclone with a fan

are supplied, which enables easy transport and reduces the risk of damage.

— The boiler is manufactured in accordance with ISO 9001 and ISO 14001.

Lower boiler door,

Pimary air flap

Boiler controller

EKO-CKS 500 kW

Exhaust fan

Boiler delivery

Cyclone
