HOT WATER SOLID FUEL BOILER

32

33

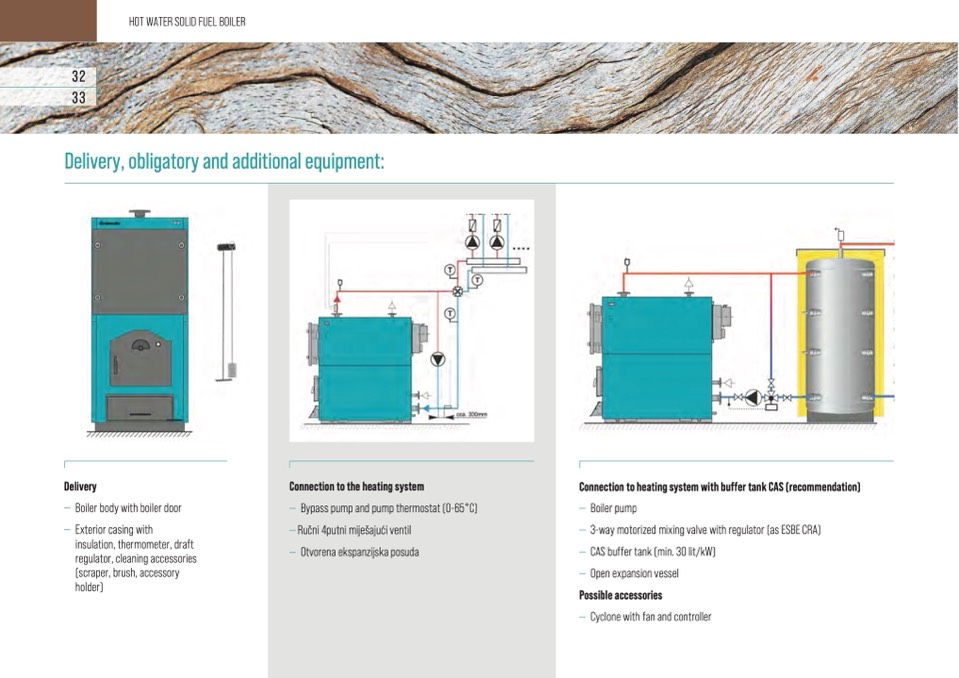

Delivery, obligatory and additional equipment:

Delivery

— Boiler body with boiler door

— Exterior casing with

insulation, thermometer, draft

regulator, cleaning accessories

(scraper, brush, accessory

holder)

Connection to heating system with buffer tank CAS (recommendation)

— Boiler pump

— 3-way motorized mixing valve with regulator (as ESBE CRA)

— CAS buffer tank (min. 30 lit/kW)

— Open expansion vessel

Possible accessories

— Cyclone with fan and controller

Connection to the heating system

— Bypass pump and pump thermostat (0-65°C)

— Ručni 4putni miješajući ventil

— Otvorena ekspanzijska posuda
