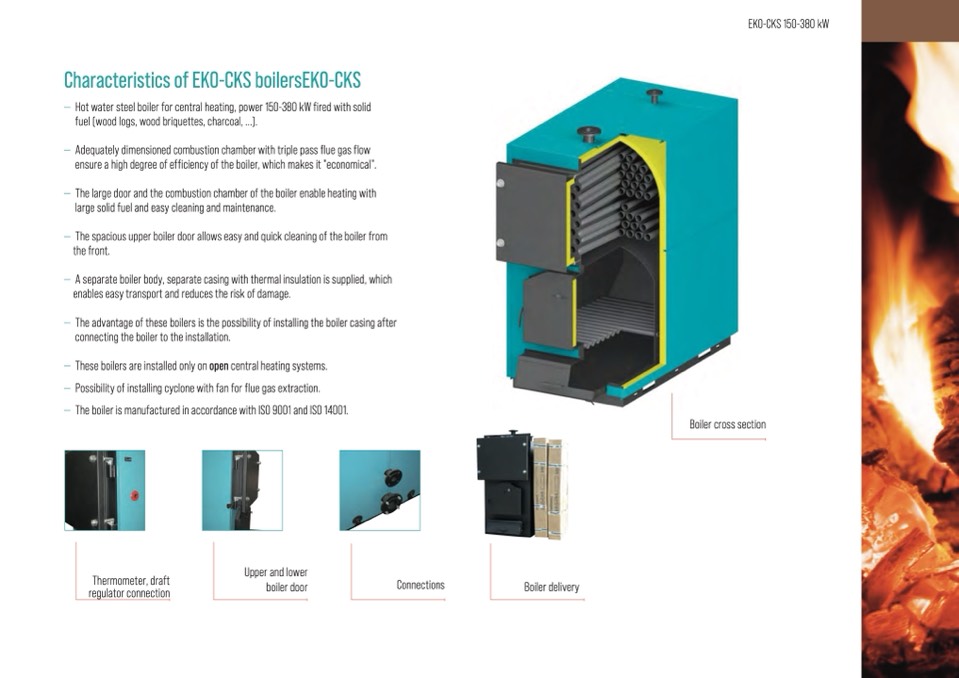

Characteristics of EKO-CKS boilersEKO-CKS

— Hot water steel boiler for central heating, power 150-380 kW fired with solid

fuel (wood logs, wood briquettes, charcoal, ...).

— Adequately dimensioned combustion chamber with triple pass flue gas flow

ensure a high degree of efficiency of the boiler, which makes it "economical".

— The large door and the combustion chamber of the boiler enable heating with

large solid fuel and easy cleaning and maintenance.

— The spacious upper boiler door allows easy and quick cleaning of the boiler from

the front.

— A separate boiler body, separate casing with thermal insulation is supplied, which

enables easy transport and reduces the risk of damage.

— The advantage of these boilers is the possibility of installing the boiler casing after

connecting the boiler to the installation.

— These boilers are installed only on open central heating systems.

— Possibility of installing cyclone with fan for flue gas extraction.

— The boiler is manufactured in accordance with ISO 9001 and ISO 14001.

EKO-CKS 150-380 kW

Boiler cross section

Thermometer, draft

regulator connection

Upper and lower

boiler door

Connections

Boiler delivery
