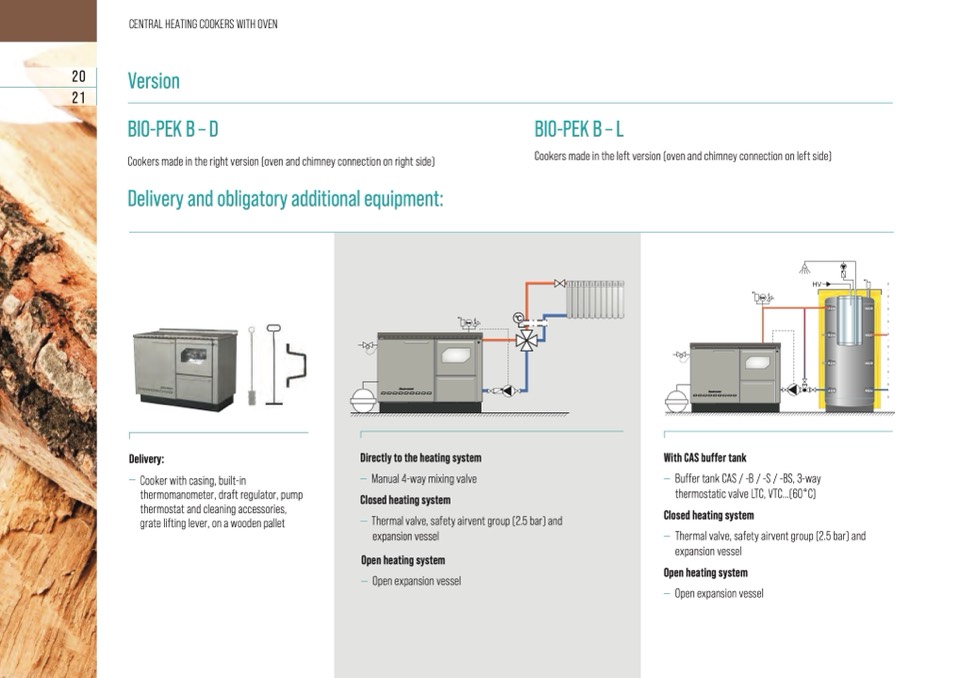

Version

BIO-PEK B – D

Cookers made in the right version (oven and chimney connection on right side)

Delivery and obligatory additional equipment:

CENTRAL HEATING COOKERS WITH OVEN

Delivery:

— Cooker with casing, built-in

thermomanometer, draft regulator, pump

thermostat and cleaning accessories,

grate lifting lever, on a wooden pallet

Directly to the heating system

— Manual 4-way mixing valve

Closed heating system

— Thermal valve, safety airvent group (2.5 bar) and

expansion vessel

Open heating system

— Open expansion vessel

With CAS buffer tank

— Buffer tank CAS / -B / -S / -BS, 3-way

thermostatic valve LTC, VTC...(60°C)

Closed heating system

— Thermal valve, safety airvent group (2.5 bar) and

expansion vessel

Open heating system

— Open expansion vessel

bar

BIO-PEK B – L

Cookers made in the left version (oven and chimney connection on left side)
