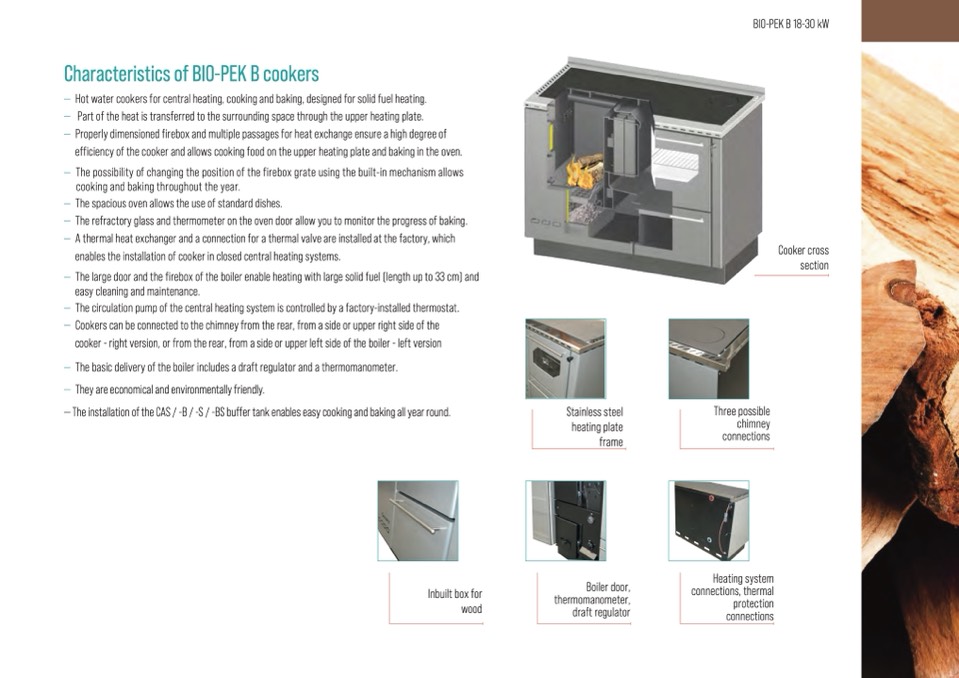

Characteristics of BIO-PEK B cookers

— Hot water cookers for central heating, cooking and baking, designed for solid fuel heating.

— Partoftheheatistransferredtothesurroundingspacethroughtheupperheatingplate.

— Properly dimensioned firebox and multiple passages for heat exchange ensure a high degree of

efficiency of the cooker and allows cooking food on the upper heating plate and baking in the oven.

— The possibility of changing the position of the firebox grate using the built-in mechanism allows

cooking and baking throughout the year.

— The spacious oven allows the use of standard dishes.

— The refractory glass and thermometer on the oven door allow you to monitor the progress of baking.

— A thermal heat exchanger and a connection for a thermal valve are installed at the factory, which

enables the installation of cooker in closed central heating systems.

— The large door and the firebox of the boiler enable heating with large solid fuel (length up to 33 cm) and

easy cleaning and maintenance.

— The circulation pump of the central heating system is controlled by a factory-installed thermostat.

— Cookers can be connected to the chimney from the rear, from a side or upper right side of the

cooker - right version, or from the rear, from a side or upper left side of the boiler - left version

— The basic delivery of the boiler includes a draft regulator and a thermomanometer.

— Theyareeconomicalandenvironmentallyfriendly.

— The installation of the CAS / -B / -S / -BS buffer tank enables easy cooking and baking all year round.

Inbuilt box for

wood

Cooker cross

section

Stainless steel

heating plate

frame

Three possible

chimney

connections

BIO-PEK B 18-30 kW

Boiler door,

thermomanometer,

draft regulator

Heating system

connections, thermal

protection

connections
