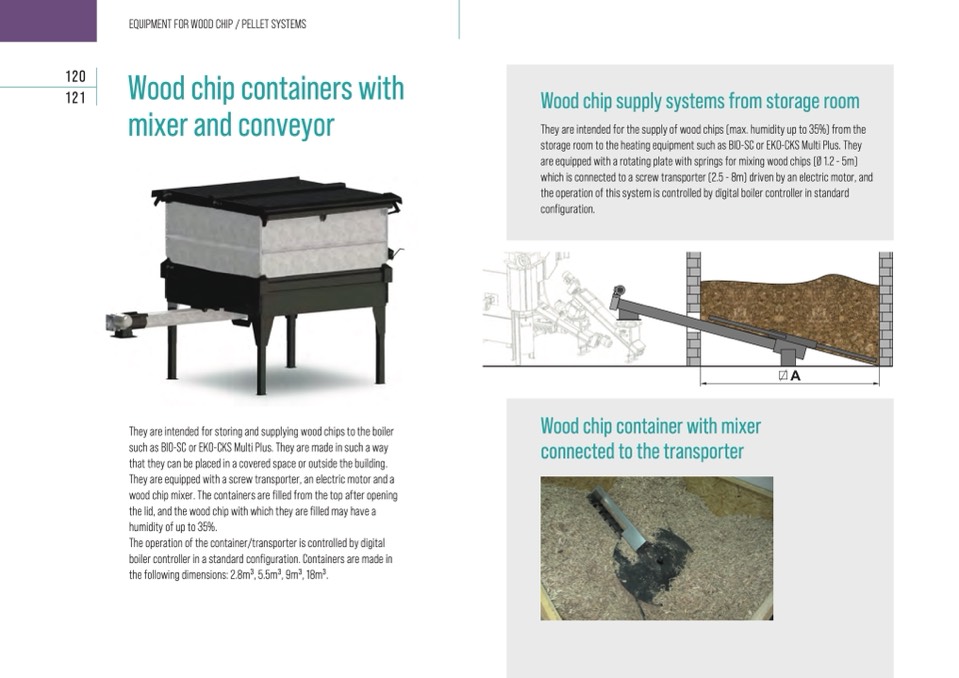

Wood chip supply systems from storage room

They are intended for the supply of wood chips (max. humidity up to 35%) from the

storage room to the heating equipment such as BIO-SC or EKO-CKS Multi Plus. They

are equipped with a rotating plate with springs for mixing wood chips (Ø 1.2 - 5m)

which is connected to a screw transporter (2.5 - 8m) driven by an electric motor, and

the operation of this system is controlled by digital boiler controller in standard

configuration.

120

121

Wood chip container with mixer

connected to the transporter

EQUIPMENT FOR WOOD CHIP / PELLET SYSTEMS

Wood chip containers with

mixer and conveyor

They are intended for storing and supplying wood chips to the boiler

such as BIO-SC or EKO-CKS Multi Plus. They are made in such a way

that they can be placed in a covered space or outside the building.

They are equipped with a screw transporter, an electric motor and a

wood chip mixer. The containers are filled from the top after opening

the lid, and the wood chip with which they are filled may have a

humidity of up to 35%.

The operation of the container/transporter is controlled by digital

boiler controller in a standard configuration. Containers are made in

the following dimensions: 2.8m3, 5.5m3, 9m3, 18m3.
