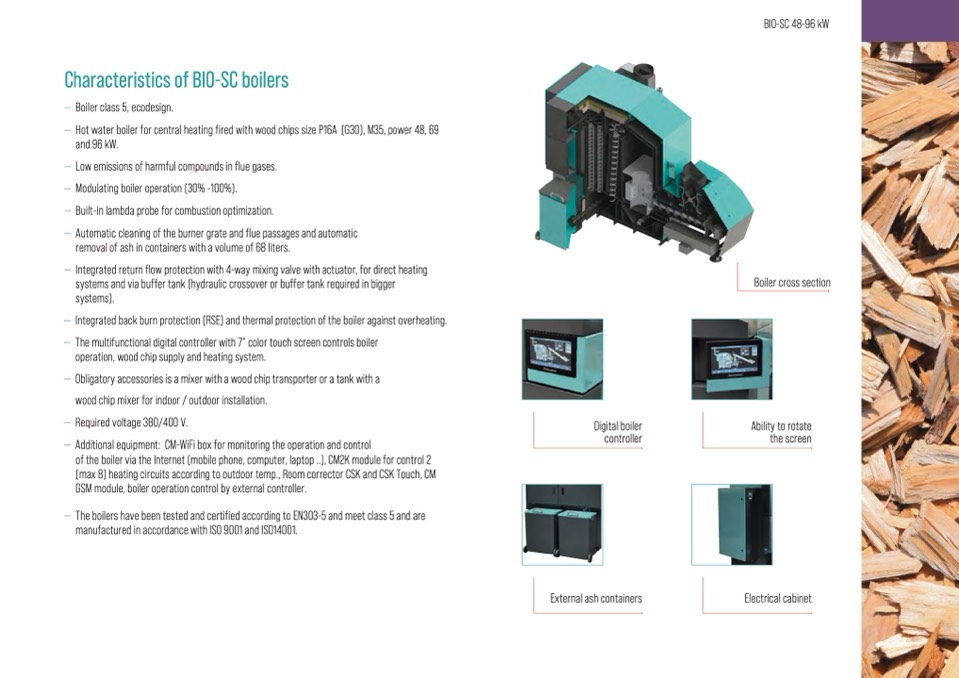

BIO-SC 48-96 kW

Characteristics of BIO-SC boilers

— Boiler class 5, ecodesign.

— Hot water boiler for central heating fired with wood chips size P16A (G30), M35, power 48, 69

and 96 kW.

— Low emissions of harmful compounds in flue gases.

— Modulating boiler operation (30% -100%).

— Built-in lambda probe for combustion optimization.

— Automaticcleaningoftheburnergrateandfluepassagesandautomatic

removal of ash in containers with a volume of 68 liters.

— Integrated return flow protection with 4-way mixing valve with actuator, for direct heating

systems and via buffer tank (hydraulic crossover or buffer tank required in bigger

systems).

— Integrated back burn protection (RSE) and thermal protection of the boiler against overheating.

— The multifunctional digital controller with 7" color touch screen controls boiler

operation, wood chip supply and heating system.

— Obligatoryaccessoriesisamixerwithawoodchiptransporteroratankwitha

wood chip mixer for indoor / outdoor installation.

— Required voltage 380/400 V.

— Additional equipment: CM-WiFi box for monitoring the operation and control

of the boiler via the Internet (mobile phone, computer, laptop ..), CM2K module for control 2

(max 8) heating circuits according to outdoor temp., Room corrector CSK and CSK Touch, CM

GSM module, boiler operation control by external controller.

— The boilers have been tested and certified according to EN303-5 and meet class 5 and are

manufactured in accordance with ISO 9001 and ISO14001.

Boiler cross section

Digital boiler

controller

Ability to rotate

the screen

External ash containers

Electrical cabinet
