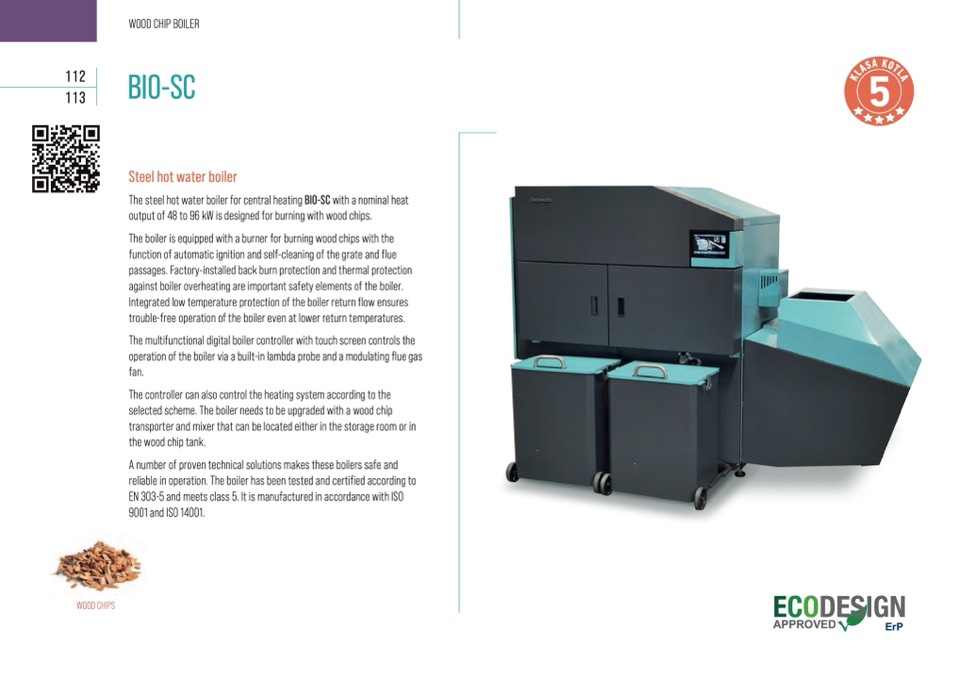

WOOD CHIP BOILER

BIO-SC

Steel hot water boiler

The steel hot water boiler for central heating BIO-SC with a nominal heat

output of 48 to 96 kW is designed for burning with wood chips.

The boiler is equipped with a burner for burning wood chips with the

function of automatic ignition and self-cleaning of the grate and flue

passages. Factory-installed back burn protection and thermal protection

against boiler overheating are important safety elements of the boiler.

Integrated low temperature protection of the boiler return flow ensures

trouble-free operation of the boiler even at lower return temperatures.

The multifunctional digital boiler controller with touch screen controls the

operation of the boiler via a built-in lambda probe and a modulating flue gas

fan.

The controller can also control the heating system according to the

selected scheme. The boiler needs to be upgraded with a wood chip

transporter and mixer that can be located either in the storage room or in

the wood chip tank.

A number of proven technical solutions makes these boilers safe and

reliable in operation. The boiler has been tested and certified according to

EN 303-5 and meets class 5. It is manufactured in accordance with ISO

9001 and ISO 14001.
