EKO-CKS P Unit 140/180

2

EKO-CKSPUnit230-430

3

EKO-CKSPUnit140-430

with cyclone and fan (optional)

EKO-CKS P Unit 499-560

with cyclone and fan (standard delivery)

4

EKO-CKS P Unit 140-320

pressurevessel50lit.-1kom

solenoid valve - 1 kom

air supply pipe - 1 kom

EKO-CKS P Unit 430-560

pressure vessel 23 lit. - 2 kom

solenoid valve - 2 kom

air supply pipe - 2 kom

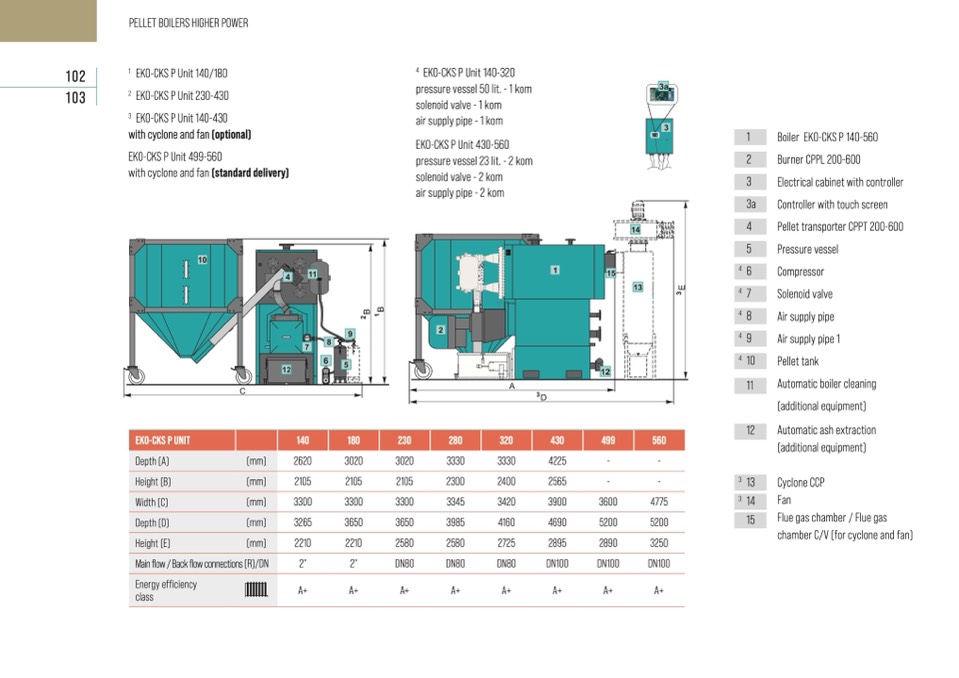

PELLET BOILERS HIGHER POWER

EKO-CKS P UNIT

140

180

230

280

320

430

499

560

(mm)

2620

3020

3020

3330

3330

4225

-

-

(mm)

2105

2105

2105

2300

2400

2565

-

-

(mm)

3300

3300

3300

3345

3420

3900

3600

4775

(mm)

3265

3650

3650

3985

4160

4690

5200

5200

(mm)

2210

2210

2580

2580

2725

2895

2890

3250

Depth (A)

Height (B)

Width (C)

Depth (D)

Height (E)

Main flow / Back flow connections (R)/DN

2"

3

13

3

14

15

Cyclone CCP

Fan

Flue gas chamber / Flue gas

chamber C/V (for cyclone and fan)

Energy efficiency

class

2"

DN80

DN80

DN80

DN100

DN100

DN100

A+

A+

A+

A+

A+

A+

A+

A+

1

Boiler EKO-CKS P 140-560

2

Burner CPPL 200-600

3

Electrical cabinet with controller

3a

Controller with touch screen

4

Pellet transporter CPPT 200-600

5

Pressure vessel

4

6

4

7

4

8

4

9

4

10

11

12

Automatic ash extraction

(additional equipment)

Compressor

Solenoid valve

Air supply pipe

Air supply pipe 1

Pellet tank

Automatic boiler cleaning

(additional equipment)
