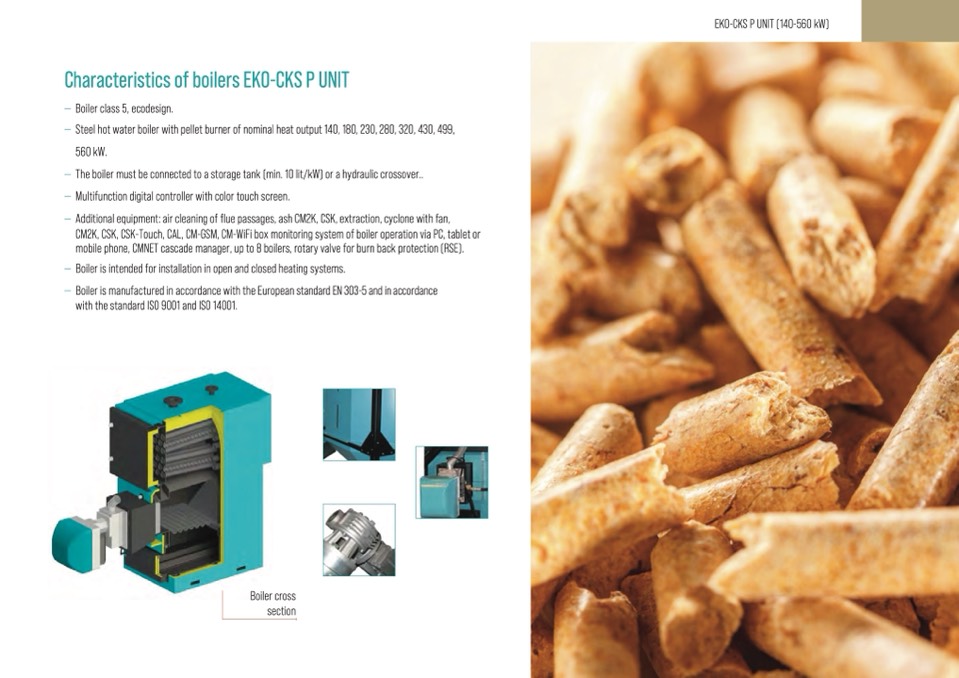

Characteristics of boilers EKO-CKS P UNIT

— Boiler class 5, ecodesign.

— Steel hot water boiler with pellet burner of nominal heat output 140, 180, 230, 280, 320, 430, 499,

560 kW.

— The boiler must be connected to a storage tank (min. 10 lit/kW) or a hydraulic crossover..

— Multifunction digital controller with color touch screen.

— Additional equipment: air cleaning of flue passages, ash CM2K, CSK, extraction, cyclone with fan,

CM2K, CSK, CSK-Touch, CAL, CM-GSM, CM-WiFi box monitoring system of boiler operation via PC, tablet or

mobile phone, CMNET cascade manager, up to 8 boilers, rotary valve for burn back protection (RSE).

— Boiler is intended for installation in open and closed heating systems.

— BoilerismanufacturedinaccordancewiththeEuropeanstandardEN303-5andinaccordance

with the standard ISO 9001 and ISO 14001.

Boiler cross

section

EKO-CKS P UNIT (140-560 kW)
