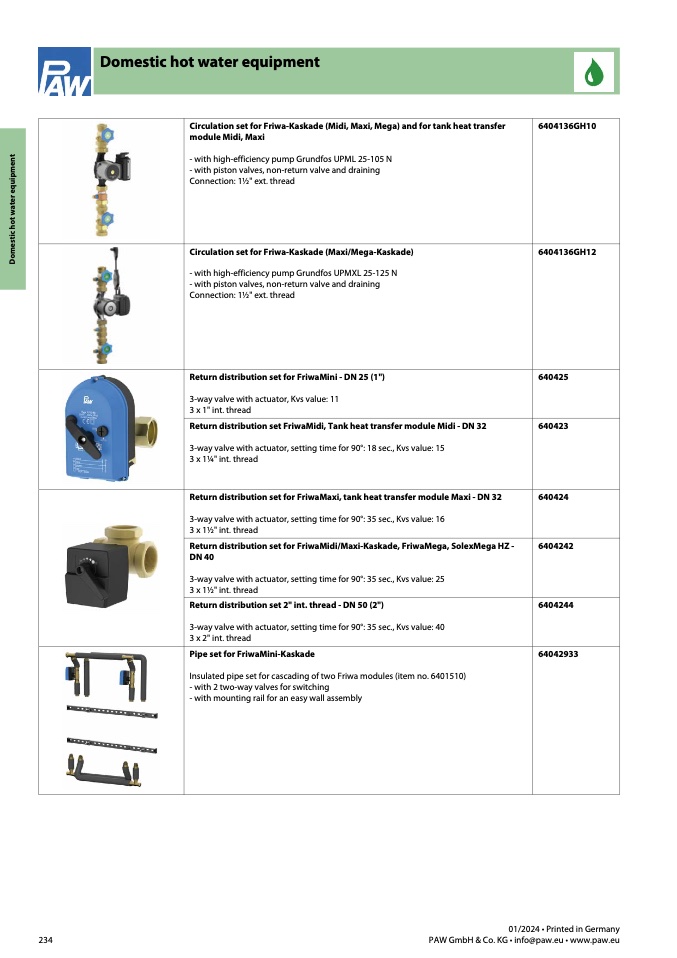

Domestic hot water equipment

Circulation set for Friwa-Kaskade (Midi, Maxi, Mega) and for tank heat transfer

module Midi, Maxi

- with high-efficiency pump Grundfos UPML 25-105 N

- with piston valves, non-return valve and draining

Connection: 1

1⁄2" ext. thread

6404136GH10

Circulation set for Friwa-Kaskade (Maxi/Mega-Kaskade)

- with high-efficiency pump Grundfos UPMXL 25-125 N

- with piston valves, non-return valve and draining

Connection: 1

1⁄2" ext. thread

6404136GH12

Return distribution set for FriwaMini - DN 25 (1")

3-way valve with actuator, Kvs value: 11

3 x 1" int. thread

640425

Return distribution set FriwaMidi, Tank heat transfer module Midi - DN 32

3-way valve with actuator, setting time for 90°: 18 sec., Kvs value: 15

3 x 1

1⁄4" int. thread

640423

Return distribution set for FriwaMaxi, tank heat transfer module Maxi - DN 32

3-way valve with actuator, setting time for 90°: 35 sec., Kvs value: 16

3 x 1

1⁄2" int. thread

640424

Return distribution set for FriwaMidi/Maxi-Kaskade, FriwaMega, SolexMega HZ -

DN 40

3-way valve with actuator, setting time for 90°: 35 sec., Kvs value: 25

3 x 1

1⁄2" int. thread

6404242

Return distribution set 2" int. thread - DN 50 (2")

3-way valve with actuator, setting time for 90°: 35 sec., Kvs value: 40

3 x 2" int. thread

6404244

Pipe set for FriwaMini-Kaskade

Insulated pipe set for cascading of two Friwa modules (item no. 6401510)

- with 2 two-way valves for switching

- with mounting rail for an easy wall assembly

64042933

D

o

m

e

s

t

i

c

h

o

t

w

a

t

e

r

e

q

u

i

p

m

e

n

t

01/2024 • Printed in Germany

234

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu
