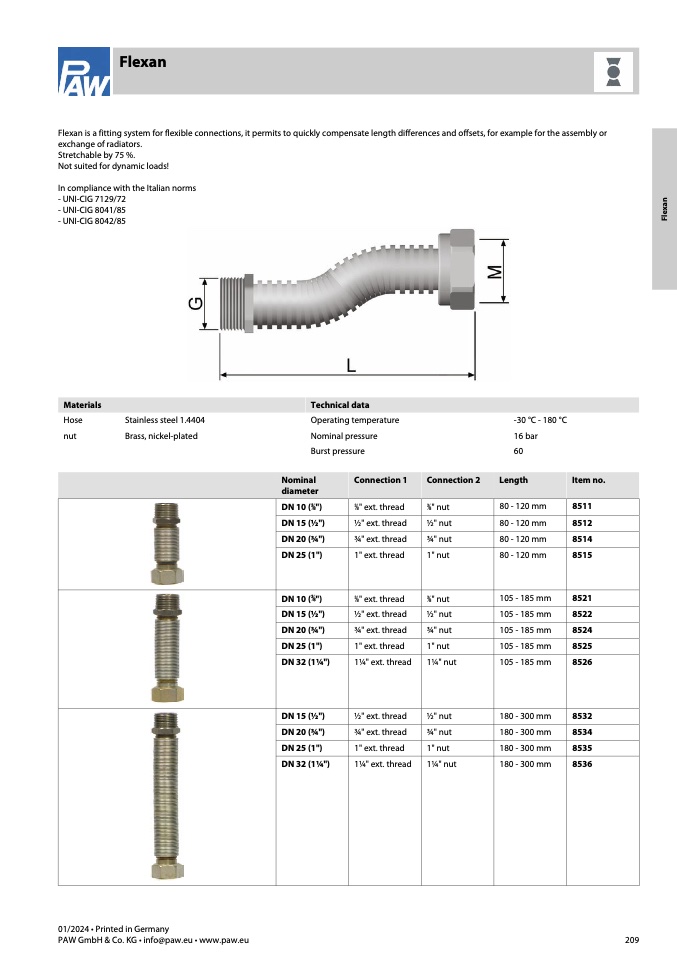

Flexan

Flexan is a fitting system for flexible connections, it permits to quickly compensate length differences and offsets, for example for the assembly or

exchange of radiators.

Stretchable by 75 %.

Not suited for dynamic loads!

In compliance with the Italian norms

- UNI-CIG 7129/72

- UNI-CIG 8041/85

- UNI-CIG 8042/85

Materials

Hose

nut

Stainless steel 1.4404

Brass, nickel-plated

Technical data

Operating temperature

Nominal pressure

Burst pressure

-30 °C - 180 °C

16 bar

60

Length

80 - 120 mm

80 - 120 mm

80 - 120 mm

105 - 185 mm

105 - 185 mm

105 - 185 mm

105 - 185 mm

180 - 300 mm

180 - 300 mm

180 - 300 mm

Nominal

diameter

DN 10 (3⁄8")

DN 15 (1⁄2")

DN 20 (

3⁄4")

DN 10 (3⁄8")

DN 15 (1⁄2")

DN 20 (

3⁄4")

DN 25 (1")

DN 15 (1⁄2")

DN 20 (3⁄4")

DN 25 (1")

Connection 1

3⁄8" ext. thread

1⁄2" ext. thread

3⁄4" ext. thread

3⁄8" ext. thread

1⁄2" ext. thread

3⁄4" ext. thread

1" ext. thread

1⁄2" ext. thread

3⁄4" ext. thread

1" ext. thread

Connection 2

3⁄8" nut

1⁄2" nut

3⁄4" nut

3⁄8" nut

1⁄2" nut

3⁄4" nut

1" nut

1⁄2" nut

3⁄4" nut

1" nut

Item no.

8511

8512

8514

8521

8522

8524

8525

8532

8534

8535

DN 25 (1")

1" ext. thread

1" nut

80 - 120 mm

8515

DN 32 (1

1⁄4")

11⁄4" ext. thread

11⁄4" nut

105 - 185 mm

8526

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

209

DN 32 (11⁄4")

11⁄4" ext. thread

11⁄4" nut

180 - 300 mm

8536
