Stainless-steel corrugated hose
S
t
a
i
n
l
e
s
s
-
s
t
e
e
l
c
o
r
r
u
g
a
t
e
d
h
o
s
e
Nominal diameter
Nominal
pressure
Stainless-steel corrugated hose - DN 32 (1
1⁄4")
Material 1.4404
Minimum length 5 m per roll
more than 50 m per roll on request
When ordering by metre, please indicate: ... rolls with ... metres per roll
805410
Connection for stainless-steel corrugated hose - DN 32 (1
1⁄4") int. thread
Scope of delivery:
1 stainless-steel holding ring, 1 screw-in fitting, 1 union nut, 1 seal
815401
Connection for stainless-steel corrugated hose - DN 32 (1
1⁄4") ext. thread
Scope of delivery:
1 stainless-steel holding ring, 1 screw-in fitting, 1 union nut, 1 seal
825401

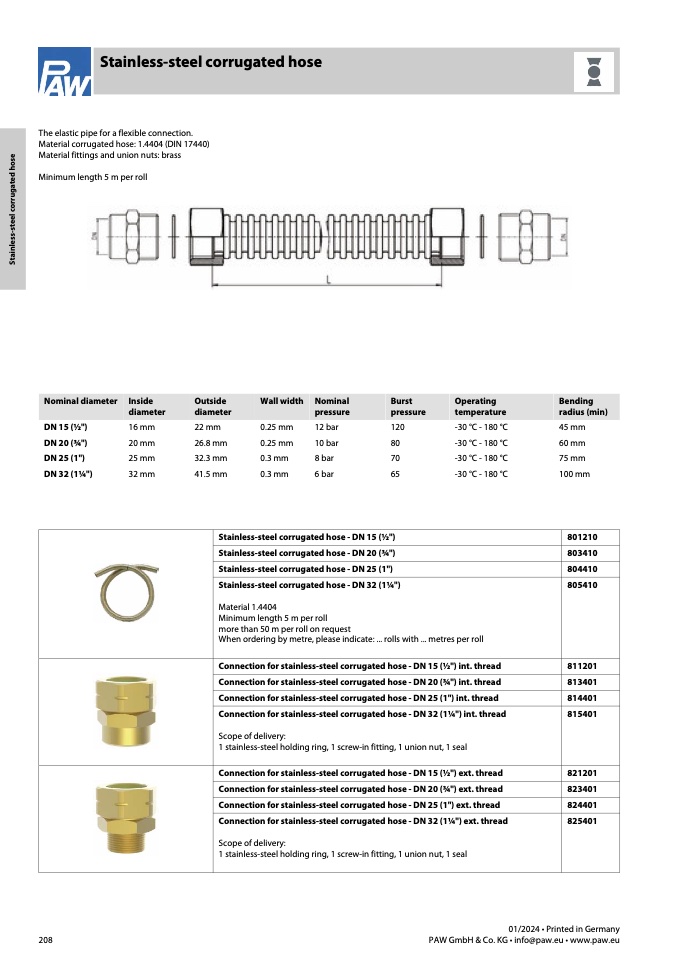

The elastic pipe for a flexible connection.
Material corrugated hose: 1.4404 (DIN 17440)
Material fittings and union nuts: brass
Minimum length 5 m per roll
DN 15 (
1⁄2")
DN 20 (
3⁄4")
DN 25 (1")
DN 32 (11⁄4")
Inside
diameter
16 mm
20 mm
25 mm
32 mm
Outside
diameter
22 mm
26.8 mm
32.3 mm
41.5 mm
Wall width
0.25 mm
0.25 mm
0.3 mm
0.3 mm
12 bar
10 bar
8 bar
6 bar
Burst
pressure
120
80
70
65
Operating
temperature
-30 °C - 180 °C
-30 °C - 180 °C
-30 °C - 180 °C
-30 °C - 180 °C
Bending
radius (min)
45 mm
60 mm
75 mm
100 mm
801210
803410
804410
811201
813401
814401
821201
823401
824401
01/2024 • Printed in Germany
• info@paw.eu • www.paw.eu
Stainless-steel corrugated hose - DN 15 (
1⁄2")
Stainless-steel corrugated hose - DN 20 (
3⁄4")
Stainless-steel corrugated hose - DN 25 (1")
Connection for stainless-steel corrugated hose - DN
Connection for stainless-steel corrugated hose - DN
Connection for stainless-steel corrugated hose - DN
Connection for stainless-steel corrugated hose - DN
Connection for stainless-steel corrugated hose - DN
Connection for stainless-steel corrugated hose - DN
15 (1⁄2") int. thread
20 (3⁄4") int. thread
25 (1") int. thread
15 (1⁄2") ext. thread
20 (3⁄4") ext. thread
25 (1") ext. thread
