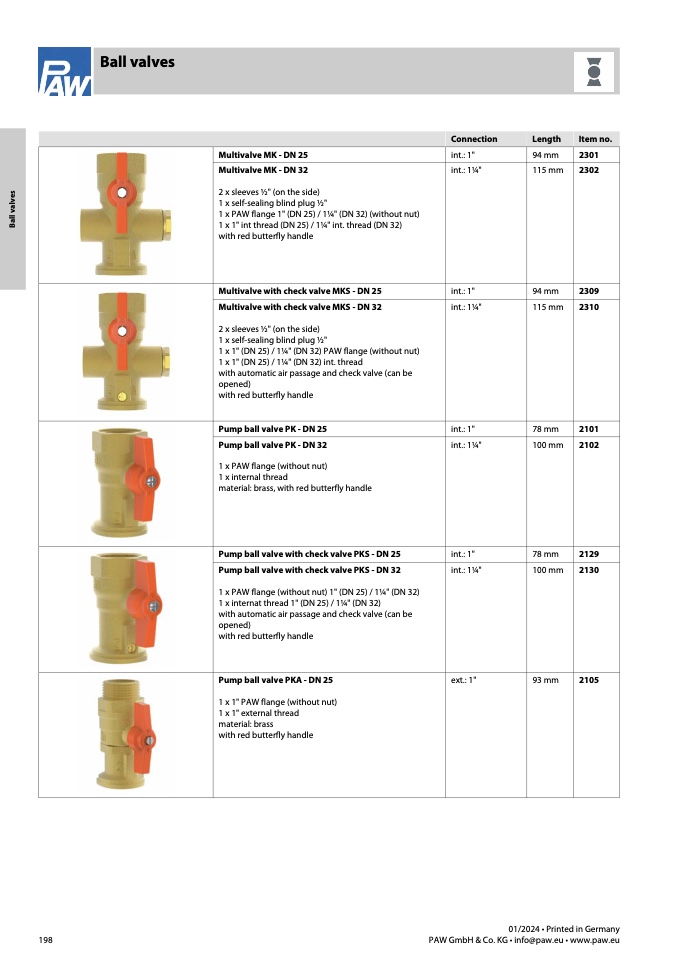

Ball valves

B

a

l

l

v

a

l

v

e

s

Multivalve MK - DN 32

2 x sleeves

1⁄2" (on the side)

1 x self-sealing blind plug 1⁄2"

1 x PAW flange 1" (DN 25) / 1

1⁄4" (DN 32) (without nut)

1 x 1" int thread (DN 25) / 1

1⁄4" int. thread (DN 32)

with red butterfly handle

int.: 1

1⁄4"

115 mm

2302

Multivalve with check valve MKS - DN 32

2 x sleeves

1⁄2" (on the side)

1 x self-sealing blind plug 1⁄2"

1 x 1" (DN 25) / 1

1⁄4" (DN 32) PAW flange (without nut)

1 x 1" (DN 25) / 1

1⁄4" (DN 32) int. thread

with automatic air passage and check valve (can be

opened)

with red butterfly handle

int.: 1

1⁄4"

115 mm

2310

Pump ball valve PK - DN 32

1 x PAW flange (without nut)

1 x internal thread

material: brass, with red butterfly handle

int.: 1

1⁄4"

100 mm

2102

Pump ball valve with check valve PKS - DN 32

1 x PAW flange (without nut) 1" (DN 25) / 1

1⁄4" (DN 32)

1 x internat thread 1" (DN 25) / 1

1⁄4" (DN 32)

with automatic air passage and check valve (can be

opened)

with red butterfly handle

int.: 1

1⁄4"

100 mm

2130

Pump ball valve PKA - DN 25

1 x 1" PAW flange (without nut)

1 x 1" external thread

material: brass

with red butterfly handle

ext.: 1"

93 mm

2105

198

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

Multivalve MK - DN 25

Multivalve with check valve MKS - DN 25

Pump ball valve PK - DN 25

Pump ball valve with check valve PKS - DN 25

Connection

int.: 1"

int.: 1"

int.: 1"

int.: 1"

Length

Item no.

94 mm

2301

94 mm

2309

78 mm

2101

78 mm

2129
