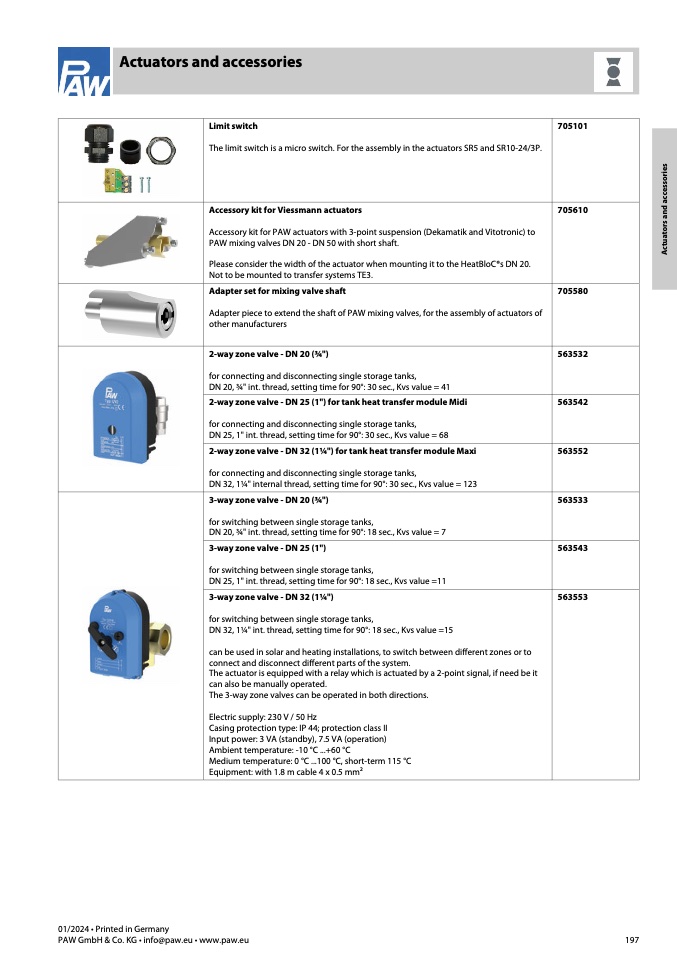

Actuators and accessories

Limit switch

The limit switch is a micro switch. For the assembly in the actuators SR5 and SR10-24/3P.

705101

Accessory kit for Viessmann actuators

Accessory kit for PAW actuators with 3-point suspension (Dekamatik and Vitotronic) to

PAW mixing valves DN 20 - DN 50 with short shaft.

Please consider the width of the actuator when mounting it to the HeatBloC®s DN 20.

Not to be mounted to transfer systems TE3.

705610

Adapter set for mixing valve shaft

Adapter piece to extend the shaft of PAW mixing valves, for the assembly of actuators of

other manufacturers

705580

2-way zone valve - DN 20 (3⁄4")

for connecting and disconnecting single storage tanks,

DN 20,

3⁄4" int. thread, setting time for 90°: 30 sec., Kvs value = 41

563532

2-way zone valve - DN 25 (1") for tank heat transfer module Midi

for connecting and disconnecting single storage tanks,

DN 25, 1" int. thread, setting time for 90°: 30 sec., Kvs value = 68

563542

2-way zone valve - DN 32 (11⁄4") for tank heat transfer module Maxi

for connecting and disconnecting single storage tanks,

DN 32, 1

1⁄4" internal thread, setting time for 90°: 30 sec., Kvs value = 123

563552

3-way zone valve - DN 20 (3⁄4")

for switching between single storage tanks,

DN 20,

3⁄4" int. thread, setting time for 90°: 18 sec., Kvs value = 7

563533

3-way zone valve - DN 25 (1")

for switching between single storage tanks,

DN 25, 1" int. thread, setting time for 90°: 18 sec., Kvs value =11

563543

3-way zone valve - DN 32 (11⁄4")

for switching between single storage tanks,

DN 32, 1

1⁄4" int. thread, setting time for 90°: 18 sec., Kvs value =15

can be used in solar and heating installations, to switch between different zones or to

connect and disconnect different parts of the system.

The actuator is equipped with a relay which is actuated by a 2-point signal, if need be it

can also be manually operated.

The 3-way zone valves can be operated in both directions.

Electric supply: 230 V / 50 Hz

Casing protection type: IP 44; protection class II

Input power: 3 VA (standby), 7.5 VA (operation)

Ambient temperature: -10 °C ...+60 °C

Medium temperature: 0 °C ...100 °C, short-term 115 °C

Equipment: with 1.8 m cable 4 x 0.5 mm2

563553
