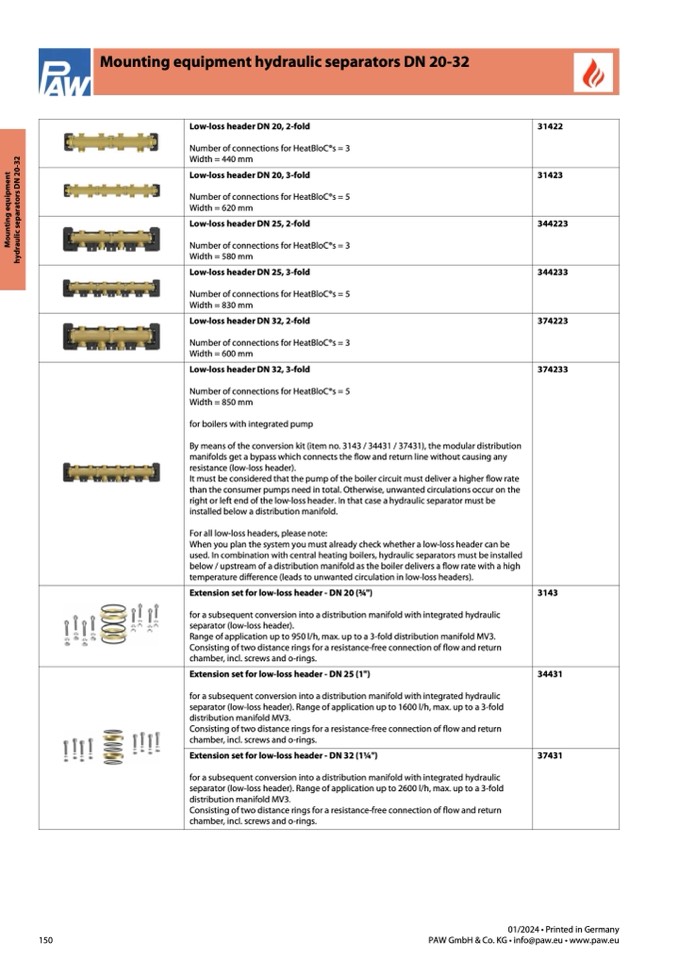

Mounting equipment hydraulic separators DN 20-32

Low-loss header DN 20, 2-fold

Number of connections for HeatBloC®s = 3

Width = 440 mm

31422

Low-loss header DN 20, 3-fold

Number of connections for HeatBloC®s = 5

Width = 620 mm

31423

Low-loss header DN 25, 2-fold

Number of connections for HeatBloC®s = 3

Width = 580 mm

344223

Low-loss header DN 25, 3-fold

Number of connections for HeatBloC®s = 5

Width = 830 mm

344233

Low-loss header DN 32, 2-fold

Number of connections for HeatBloC®s = 3

Width = 600 mm

374223

Low-loss header DN 32, 3-fold

Number of connections for HeatBloC®s = 5

Width = 850 mm

for boilers with integrated pump

By means of the conversion kit (item no. 3143 / 34431 / 37431), the modular distribution

manifolds get a bypass which connects the flow and return line without causing any

resistance (low-loss header).

It must be considered that the pump of the boiler circuit must deliver a higher flow rate

than the consumer pumps need in total. Otherwise, unwanted circulations occur on the

right or left end of the low-loss header. In that case a hydraulic separator must be

installed below a distribution manifold.

For all low-loss headers, please note:

When you plan the system you must already check whether a low-loss header can be

used. In combination with central heating boilers, hydraulic separators must be installed

below / upstream of a distribution manifold as the boiler delivers a flow rate with a high

temperature difference (leads to unwanted circulation in low-loss headers).

374233

Extension set for low-loss header - DN 20 (

3⁄4")

for a subsequent conversion into a distribution manifold with integrated hydraulic

separator (low-loss header).

Range of application up to 950 l/h, max. up to a 3-fold distribution manifold MV3.

Consisting of two distance rings for a resistance-free connection of flow and return

chamber, incl. screws and o-rings.

3143

Extension set for low-loss header - DN 25 (1")

for a subsequent conversion into a distribution manifold with integrated hydraulic

separator (low-loss header). Range of application up to 1600 l/h, max. up to a 3-fold

distribution manifold MV3.

Consisting of two distance rings for a resistance-free connection of flow and return

chamber, incl. screws and o-rings.

34431

Extension set for low-loss header - DN 32 (1

1⁄4")

for a subsequent conversion into a distribution manifold with integrated hydraulic

separator (low-loss header). Range of application up to 2600 l/h, max. up to a 3-fold

distribution manifold MV3.

Consisting of two distance rings for a resistance-free connection of flow and return

chamber, incl. screws and o-rings.

37431
