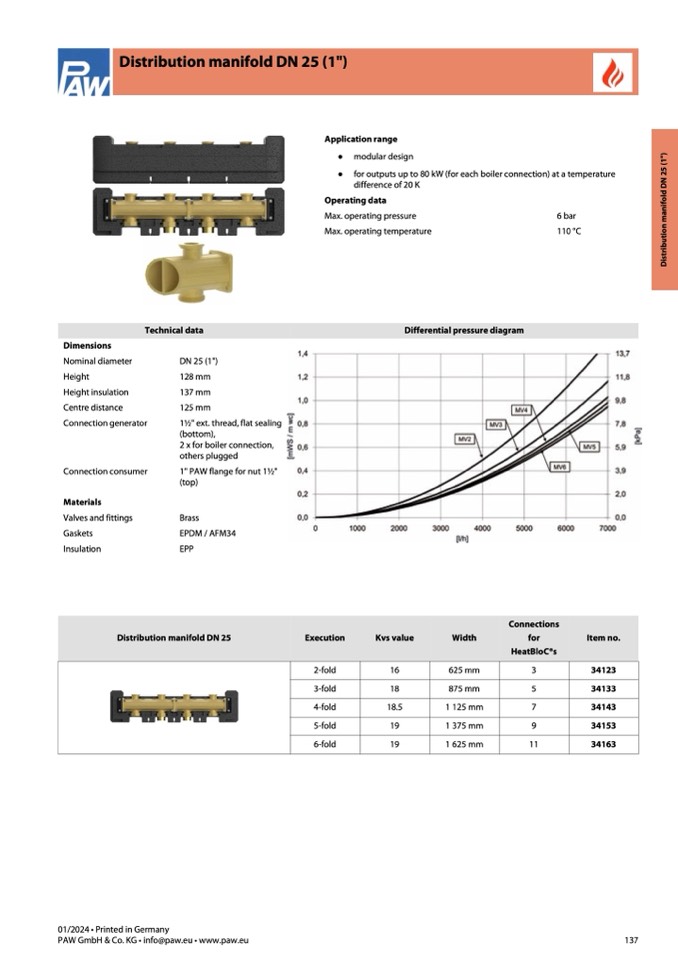

Distribution manifold DN 25 (1")

Application range

● modular design

● for outputs up to 80 kW (for each boiler connection) at a temperature

difference of 20 K

Operating data

Max. operating pressure

Max. operating temperature

6 bar

110 °C

Dimensions

Nominal diameter

Height

Height insulation

Centre distance

Connection generator

Connection consumer

Materials

Valves and fittings

Gaskets

Insulation

DN 25 (1")

128 mm

137 mm

125 mm

11⁄2" ext. thread, flat sealing

(bottom),

2 x for boiler connection,

others plugged

1" PAW flange for nut 1

1⁄2"

(top)

Brass

EPDM / AFM34

EPP

Technical data

Differential pressure diagram

Distribution manifold DN 25

Execution

2-fold

3-fold

4-fold

5-fold

6-fold

Kvs value

16

18

18.5

19

19

Width

625 mm

875 mm

1 125 mm

1 375 mm

1 625 mm

3

5

7

9

11

Item no.

34123

34133

34143

34153

34163
