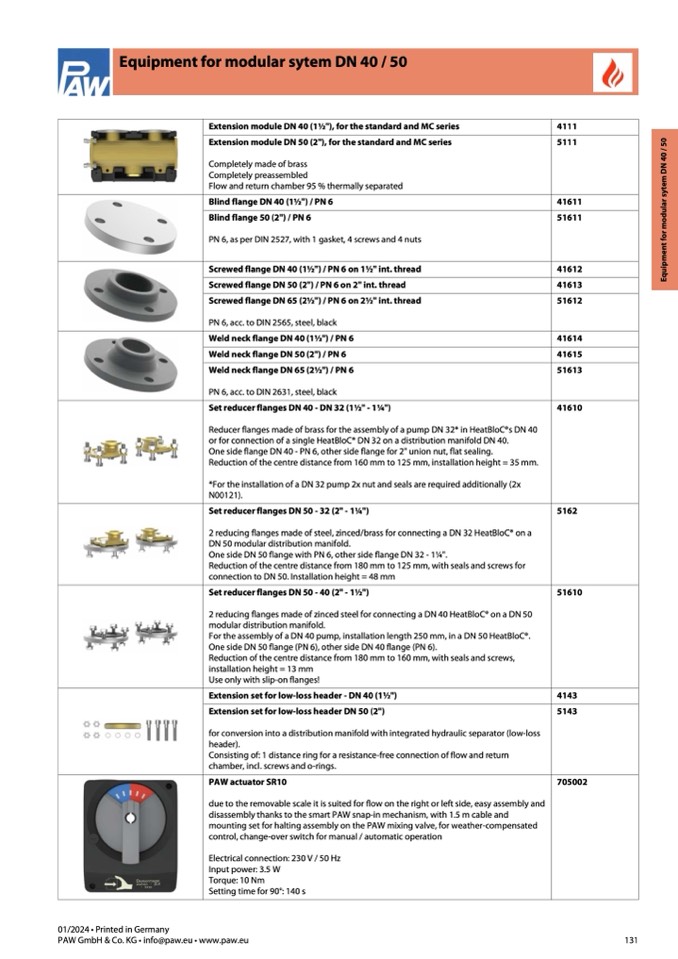

Equipment for modular sytem DN 40 / 50

Extension module DN 40 (1

1⁄2"), for the standard and MC series

Blind flange DN 40 (1

1⁄2") / PN 6

Screwed flange DN 40 (11⁄2") / PN 6 on 1

1⁄2" int. thread

Screwed flange DN 50 (2") / PN 6 on 2" int. thread

Weld neck flange DN 40 (1

1⁄2") / PN 6

Weld neck flange DN 50 (2") / PN 6

Extension set for low-loss header - DN 40 (1

1⁄2")

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

4111

41611

41612

41613

41614

41615

Extension module DN 50 (2"), for the standard and MC series

Completely made of brass

Completely preassembled

Flow and return chamber 95 % thermally separated

5111

Blind flange 50 (2") / PN 6

PN 6, as per DIN 2527, with 1 gasket, 4 screws and 4 nuts

51611

Screwed flange DN 65 (21⁄2") / PN 6 on 2

1⁄2" int. thread

PN 6, acc. to DIN 2565, steel, black

51612

Weld neck flange DN 65 (2

1⁄2") / PN 6

PN 6, acc. to DIN 2631, steel, black

51613

Set reducer flanges DN 40 - DN 32 (11⁄2" - 1

1⁄4")

Reducer flanges made of brass for the assembly of a pump DN 32* in HeatBloC®s DN 40

or for connection of a single HeatBloC® DN 32 on a distribution manifold DN 40.

One side flange DN 40 - PN 6, other side flange for 2" union nut, flat sealing.

Reduction of the centre distance from 160 mm to 125 mm, installation height = 35 mm.

*For the installation of a DN 32 pump 2x nut and seals are required additionally (2x

N00121).

41610

Set reducer flanges DN 50 - 32 (2" - 11⁄4")

2 reducing flanges made of steel, zinced/brass for connecting a DN 32 HeatBloC® on a

DN 50 modular distribution manifold.

One side DN 50 flange with PN 6, other side flange DN 32 - 11⁄4".

Reduction of the centre distance from 180 mm to 125 mm, with seals and screws for

connection to DN 50. Installation height = 48 mm

5162

Set reducer flanges DN 50 - 40 (2" - 11⁄2")

2 reducing flanges made of zinced steel for connecting a DN 40 HeatBloC® on a DN 50

modular distribution manifold.

For the assembly of a DN 40 pump, installation length 250 mm, in a DN 50 HeatBloC®.

One side DN 50 flange (PN 6), other side DN 40 flange (PN 6).

Reduction of the centre distance from 180 mm to 160 mm, with seals and screws,

installation height = 13 mm

Use only with slip-on flanges!

51610

4143

Extension set for low-loss header DN 50 (2")

for conversion into a distribution manifold with integrated hydraulic separator (low-loss

header).

Consisting of: 1 distance ring for a resistance-free connection of flow and return

chamber, incl. screws and o-rings.

5143

PAW actuator SR10

due to the removable scale it is suited for flow on the right or left side, easy assembly and

disassembly thanks to the smart PAW snap-in mechanism, with 1.5 m cable and

mounting set for halting assembly on the PAW mixing valve, for weather-compensated

control, change-over switch for manual / automatic operation

Electrical connection: 230 V / 50 Hz

Input power: 3.5 W

Torque: 10 Nm

Setting time for 90°: 140 s

705002
