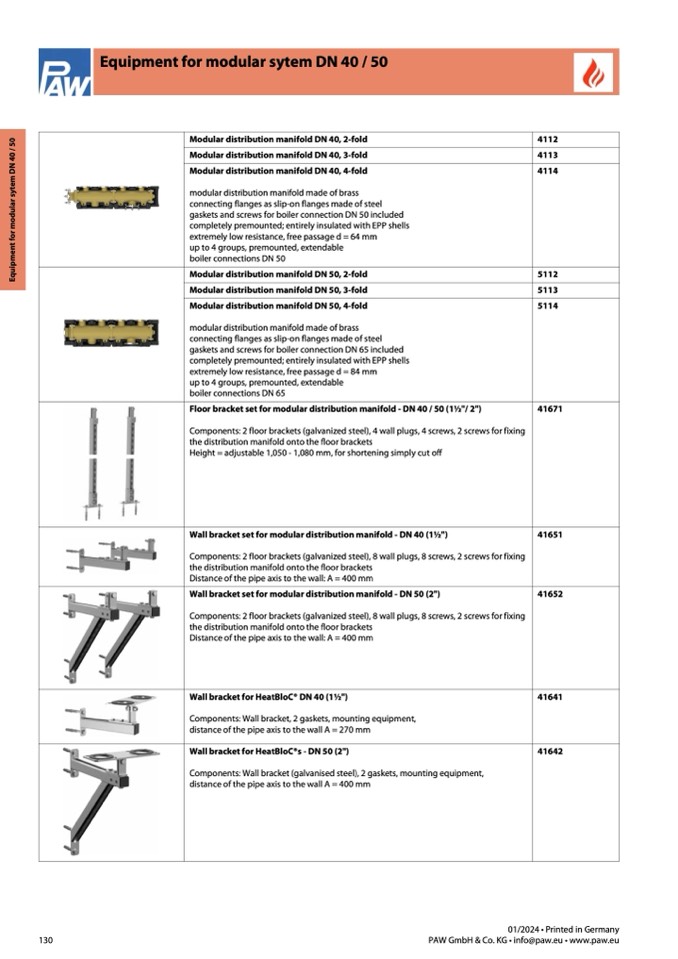

Equipment for modular sytem DN 40 / 50
E
q
u
i
p
m
e
n
t
f
o
r
m
o
d
u
l
a
r
s
y
t
e
m
D
N
4
0
/
5
0
Modular distribution manifold DN 40, 4-fold
modular distribution manifold made of brass
connecting flanges as slip-on flanges made of steel
gaskets and screws for boiler connection DN 50 included
completely premounted; entirely insulated with EPP shells
extremely low resistance, free passage d = 64 mm
up to 4 groups, premounted, extendable
boiler connections DN 50
4114
Modular distribution manifold DN 50, 4-fold
modular distribution manifold made of brass
connecting flanges as slip-on flanges made of steel
gaskets and screws for boiler connection DN 65 included
completely premounted; entirely insulated with EPP shells
extremely low resistance, free passage d = 84 mm
up to 4 groups, premounted, extendable
boiler connections DN 65
Floor bracket set for modular distribution manifold - DN 40 / 50 (11⁄2"/ 2")
Components: 2 floor brackets (galvanized steel), 4 wall plugs, 4 screws, 2 screws for fixing
the distribution manifold onto the floor brackets
Height = adjustable 1,050 - 1,080 mm, for shortening simply cut off
5114
41671
Wall bracket set for modular distribution manifold - DN 40 (1
1⁄2")
Components: 2 floor brackets (galvanized steel), 8 wall plugs, 8 screws, 2 screws for fixing
the distribution manifold onto the floor brackets
Distance of the pipe axis to the wall: A = 400 mm
41651
Wall bracket set for modular distribution manifold - DN 50 (2")
Components: 2 floor brackets (galvanized steel), 8 wall plugs, 8 screws, 2 screws for fixing
the distribution manifold onto the floor brackets
Distance of the pipe axis to the wall: A = 400 mm
41652
Wall bracket for HeatBloC® DN 40 (1
1⁄2")
Components: Wall bracket, 2 gaskets, mounting equipment,
distance of the pipe axis to the wall A = 270 mm
41641
Wall bracket for HeatBloC®s - DN 50 (2")
Components: Wall bracket (galvanised steel), 2 gaskets, mounting equipment,
distance of the pipe axis to the wall A = 400 mm
41642
Modular distribution manifold DN 40, 2-fold
Modular distribution manifold DN 40, 3-fold
Modular distribution manifold DN 50, 2-fold
Modular distribution manifold DN 50, 3-fold
4112
4113
5112
5113
130
