ELETTROVALVOLE

GAS SOLENOID VALVES

Modello

Type

Attacchi

Connections

Portata(mc/H)

Flow

Potenza

Power

A

(mm)

B

(mm)

Omologazioni

Approvals

Alimentazione

Power supply

82

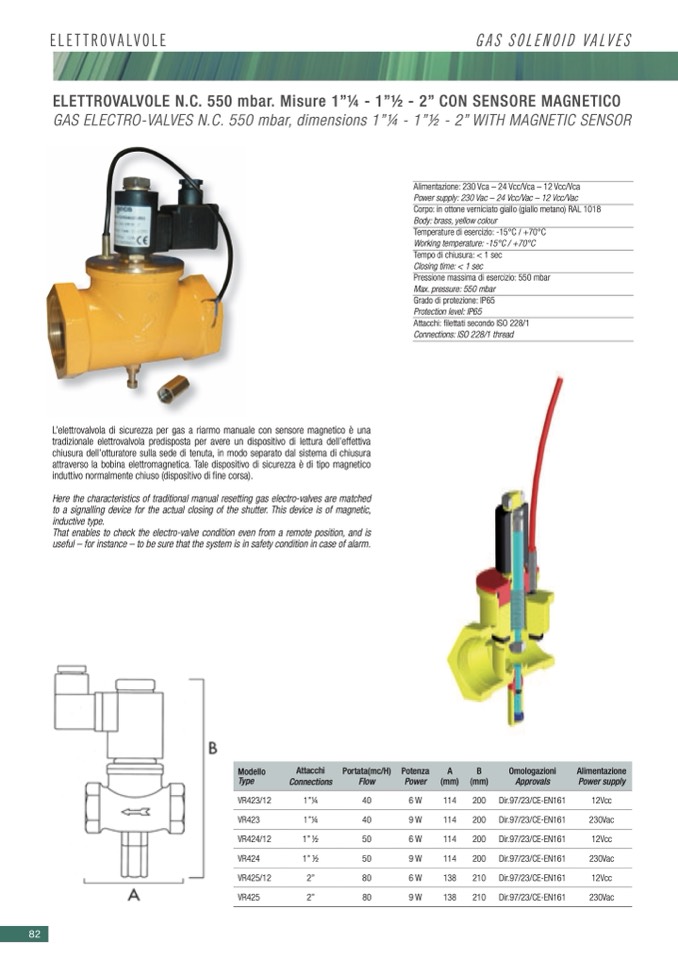

ELETTROVALVOLE N.C. 550 mbar. Misure 1”1⁄4 - 1”1⁄2 - 2” CON SENSORE MAGNETICO

GAS ELECTRO-VALVES N.C. 550 mbar, dimensions 1”1⁄4 - 1”1⁄2 - 2” WITH MAGNETIC SENSOR

Alimentazione: 230 Vca – 24 Vcc/Vca – 12 Vcc/Vca

Power supply: 230 Vac – 24 Vcc/Vac – 12 Vcc/Vac

Corpo: in ottone verniciato giallo (giallo metano)

Body: brass, yellow colour

Temperature di esercizio: -15°C / +70°C

Working temperature: -15°C / +70°C

Tempo di chiusura: < 1 sec

Closing time: < 1 sec

Pressione massima di esercizio: 550 mbar

Max. pressure: 550 mbar

Grado di protezione: IP65

Protection level: IP65

Attacchi: filettati secondo ISO 228/1

Connections: ISO 228/1 thread

RAL 1018

L’elettrovalvola di sicurezza per gas a riarmo manuale con sensore magnetico è una

tradizionale elettrovalvola predisposta per avere un dispositivo di lettura dell’effettiva

chiusura dell’otturatore sulla sede di tenuta, in modo separato dal sistema di chiusura

attraverso la bobina elettromagnetica. Tale dispositivo di sicurezza è di tipo magnetico

induttivo normalmente chiuso (dispositivo di fine corsa).

Here the characteristics of traditional manual resetting gas electro-valves are matched

to a signalling device for the actual closing of the shutter. This device is of magnetic,

inductive type.

That enables to check the electro-valve condition even from a remote position, and is

useful – for instance – to be sure that the system is in safety condition in case of alarm.

VR423/12

1”1⁄4

40

VR423

1”1⁄4

40

VR424/12

1” 1⁄2

50

VR424

1” 1⁄2

50

VR425/12

2”

80

VR425

2”

80

6W

114

200

9W

114

200

6W

114

200

9W

114

200

6W

138

210

9W

138

210

Dir.97/23/CE-EN161

Dir.97/23/CE-EN161

Dir.97/23/CE-EN161

Dir.97/23/CE-EN161

Dir.97/23/CE-EN161

Dir.97/23/CE-EN161

12Vcc

230Vac

12Vcc

230Vac

12Vcc

230Vac
