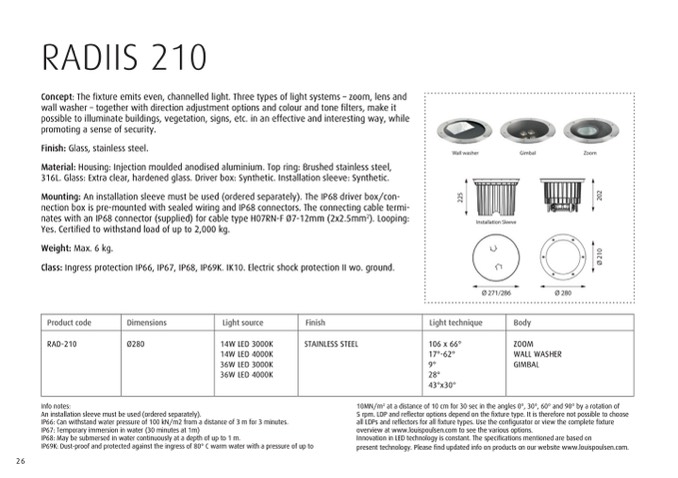

Radiis 210

Concept: The fixture emits even, channelled light. Three types of light systems – zoom, lens and

wall washer – together with direction adjustment options and colour and tone filters, make it

possible to illuminate buildings, vegetation, signs, etc. in an effective and interesting way, while

promoting a sense of security.

Finish: Glass, stainless steel.

Material: Housing: Injection moulded anodised aluminium. Top ring: Brushed stainless steel,

316L. Glass: Extra clear, hardened glass. Driver box: Synthetic. Installation sleeve: Synthetic.

Mounting: An installation sleeve must be used (ordered separately). The IP68 driver box/con-

nection box is pre-mounted with sealed wiring and IP68 connectors. The connecting cable termi-

nates with an IP68 connector (supplied) for cable type H07RN-F Ø7-12mm (2x2.5mm

2

). Looping:

Yes. Certified to withstand load of up to 2,000 kg.

Weight: Max. 6 kg.

Class: Ingress protection IP66, IP67, IP68, IP69K. IK10. Electric shock protection II wo. ground.

Product code

Dimensions

Light source

Finish

Light technique

Body

RAD-210

Ø280

14W LED 3000K

14W LED 4000K

36W LED 3000K

36W LED 4000K

STAINLESS STEEL

106 x 66°

17°-62°

9°

28°

43°x30°

ZooM

WALL WASHER

GIMBAL

26

Info notes:

An installation sleeve must be used (ordered separately).

IP66: Can withstand water pressure of 100 kN/m2 from a distance of 3 m for 3 minutes.

IP67: Temporary immersion in water (30 minutes at 1m)

IP68: May be submersed in water continuously at a depth of up to 1 m.

IP69K: Dust-proof and protected against the ingress of 80° C warm water with a pressure of up to

10MN/m

2

at a distance of 10 cm for 30 sec in the angles 0°, 30°, 60° and 90° by a rotation of

5 rpm. LDP and reflector options depend on the fixture type. It is therefore not possible to choose

all LDPs and reflectors for all fixture types. Use the configurator or view the complete fixture

overview at www.louispoulsen.com to see the various options.

Innovation in LED technology is constant. The specifications mentioned are based on

present technology. Please find updated info on products on our website www.louispoulsen.com.
