100 kN/m2. 3 min. 3m

0,3 - 1,0 m

30 min.

30 min.

< 1,0 m

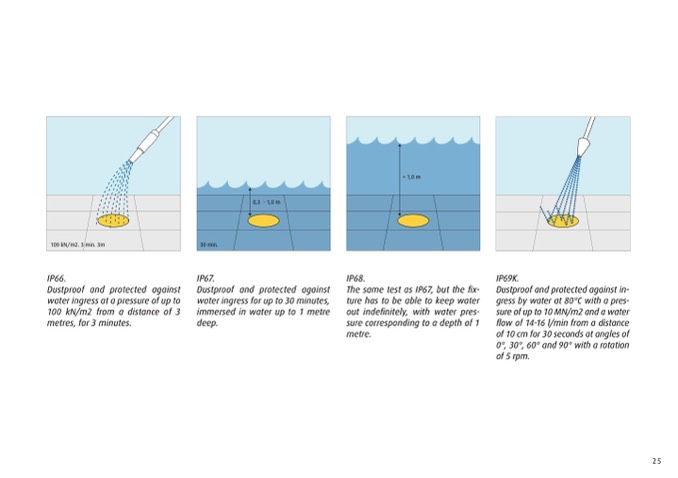

IP66.

Dustproof and protected against

water ingress at a pressure of up to

100 kN/m2 from a distance of 3

metres, for 3 minutes.

IP67.

Dustproof and protected against

water ingress for up to 30 minutes,

immersed in water up to 1 metre

deep.

IP68.

The same test as IP67, but the fix-

ture has to be able to keep water

out indefinitely, with water pres-

sure corresponding to a depth of 1

metre.

IP69K.

Dustproof and protected against in-

gress by water at 80°C with a pres-

sure of up to 10 MN/m2 and a water

flow of 14-16 l/min from a distance

of 10 cm for 30 seconds at angles of

0°, 30°, 60° and 90° with a rotation

of 5 rpm.

25
