Atlas Concorde

Catalog 2025

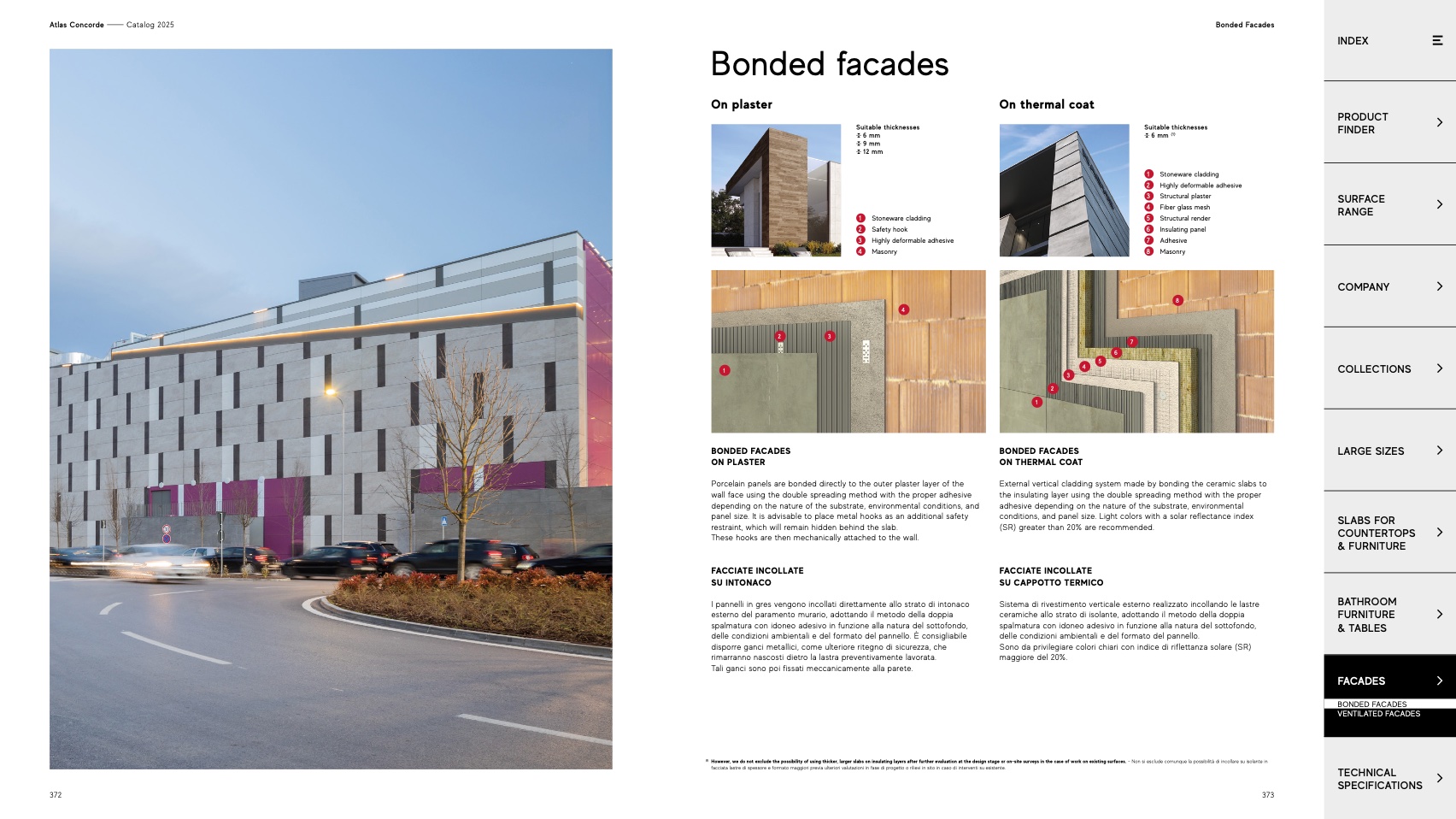

Bonded Facades

Bonded facades

On plaster

On thermal coat

Suitable thicknesses

6 mm

Suitable thicknesses

6 mm

(1)

1

Stoneware cladding

2 Highly deformable adhesive

3 Structural plaster

4 Fiber glass mesh

5 Structural render

6 Insulating panel

7 Adhesive

8 Masonry

8

1

2

3

4

9 mm

12 mm

Stoneware cladding

Safety hook

Highly deformable adhesive

Masonry

4

372

373

(1)

However, we do not exclude the possibility of using thicker, larger slabs on insulating layers after further evaluation at the design stage or on-site surveys in the case of work on existing surfaces. - Non si esclude comunque la possibilità di incollare su isolante in

facciata lastre di spessore e formato maggiori previa ulteriori valutazioni in fase di progetto o rilievi in sito in caso di interventi su esistente.

1

BONDED FACADES

ON PLASTER

2

3

7

Porcelain panels are bonded directly to the outer plaster layer of the

wall face using the double spreading method with the proper adhesive

depending on the nature of the substrate, environmental conditions, and

panel size. It is advisable to place metal hooks as an additional safety

restraint, which will remain hidden behind the slab.

These hooks are then mechanically attached to the wall.

FACCIATE INCOLLATE

SU INTONACO

I pannelli in gres vengono incollati direttamente allo strato di intonaco

esterno del paramento murario, adottando il metodo della doppia

spalmatura con idoneo adesivo in funzione alla natura del sottofondo,

delle condizioni ambientali e del formato del pannello. È consigliabile

disporre ganci metallici, come ulteriore ritegno di sicurezza, che

rimarranno nascosti dietro la lastra preventivamente lavorata.

Tali ganci sono poi fissati meccanicamente alla parete.

External vertical cladding system made by bonding the ceramic slabs to

the insulating layer using the double spreading method with the proper

adhesive depending on the nature of the substrate, environmental

conditions, and panel size. Light colors with a solar reflectance index

(SR) greater than 20% are recommended.

FACCIATE INCOLLATE

SU CAPPOTTO TERMICO

Sistema di rivestimento verticale esterno realizzato incollando le lastre

ceramiche allo strato di isolante, adottando il metodo della doppia

spalmatura con idoneo adesivo in funzione alla natura del sottofondo,

delle condizioni ambientali e del formato del pannello.

Sono da privilegiare colori chiari con indice di riflettanza solare (SR)

maggiore del 20%.

4

3

2

1

BONDED FACADES

ON THERMAL COAT

6

5
