Raccordi Filettati

Thread Fittings

Raccords Fileté

Caratteristiche tecniche e vantaggi

- Ricavata da barra

- Sede perfettamente piana per guarnizione

- Realizzato con acciaio AVP 1.0736/11S Mn37+C

- Zincata

- Filettatura UNI ISO 228

02

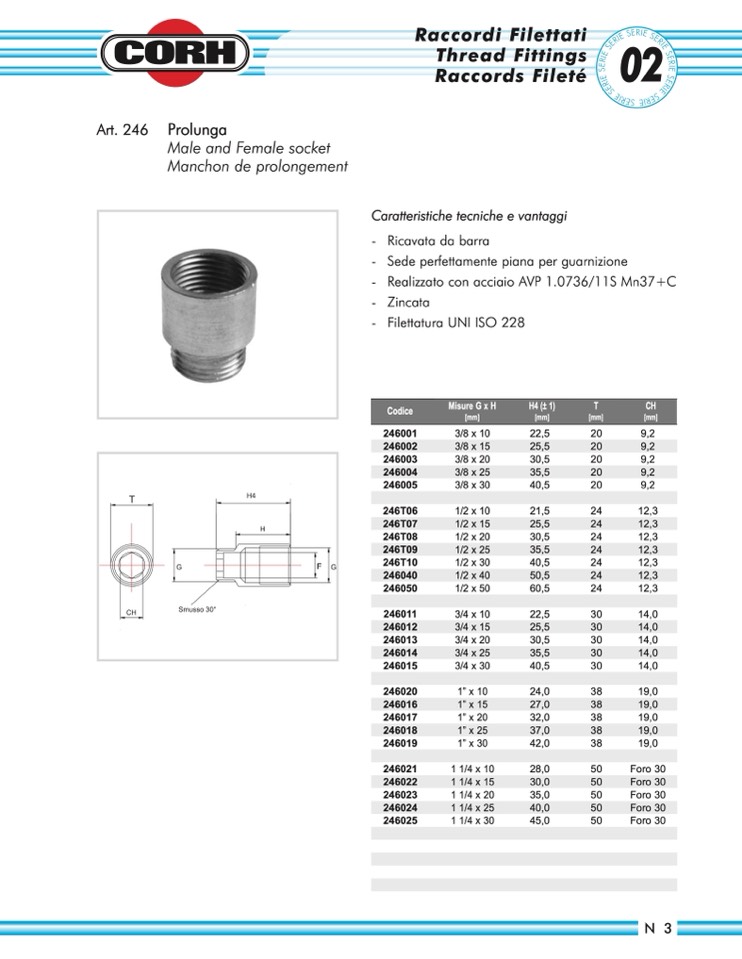

Art. 246

Prolunga

Male and Female socket

Manchon de prolongement

Codice

Misure G x H

H4 (± 1)

T

CH

[mm]

[mm]

[mm]

[mm]

246001

3/8 x 10

22,5

246002

3/8 x 15

25,5

246003

3/8 x 20

30,5

246004

3/8 x 25

35,5

246005

3/8 x 30

40,5

246T06

1/2 x 10

21,5

246T07

1/2 x 15

25,5

246T08

1/2 x 20

30,5

246T09

1/2 x 25

35,5

246T10

1/2 x 30

40,5

246040

1/2 x 40

50,5

246050

1/2 x 50

60,5

246011

3/4 x 10

22,5

246012

3/4 x 15

25,5

246013

3/4 x 20

30,5

246014

3/4 x 25

35,5

246015

3/4 x 30

40,5

246020

1” x 10

24,0

246016

1” x 15

27,0

246017

1” x 20

32,0

246018

1” x 25

37,0

246019

1” x 30

42,0

246021

1 1/4 x 10

28,0

246022

1 1/4 x 15

30,0

246023

1 1/4 x 20

35,0

246024

1 1/4 x 25

40,0

246025

1 1/4 x 30

45,0

20

9,2

20

9,2

20

9,2

20

9,2

20

9,2

24

12,3

24

12,3

24

12,3

24

12,3

24

12,3

24

12,3

24

12,3

30

14,0

30

14,0

30

14,0

30

14,0

30

14,0

38

19,0

38

19,0

38

19,0

38

19,0

38

19,0

50

Foro 30

50

Foro 30

50

Foro 30

50

Foro 30

50

Foro 30

F

N

3
