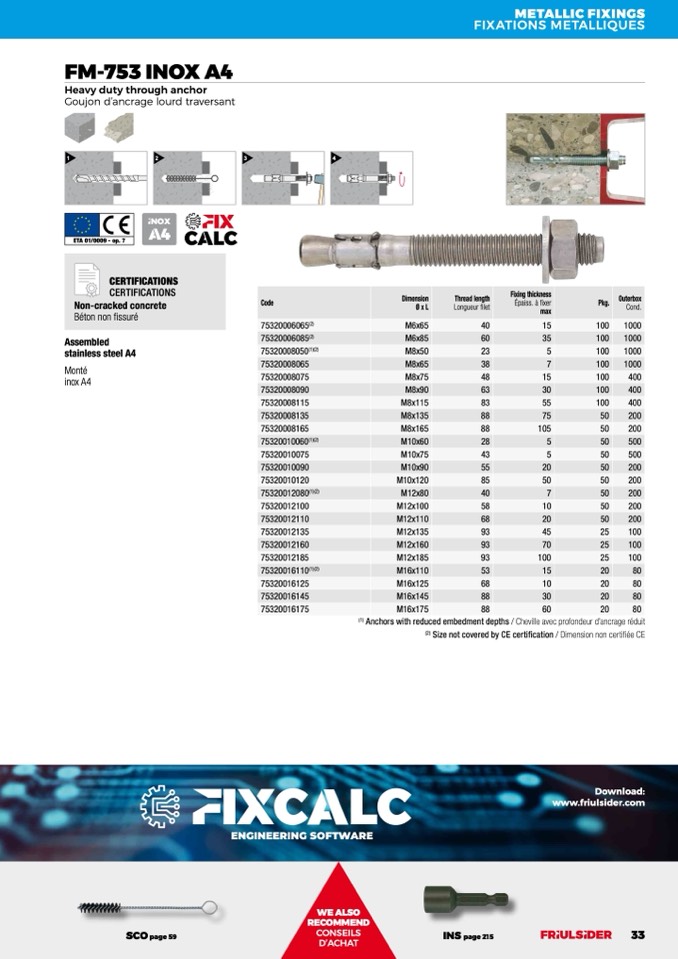

FM-753 INOX A4
Heavy duty through anchor
Goujon d’ancrage lourd traversant
1
2
1
2
3
4
3
4
CERTIFICATIONS
CERTIFICATIONS
Non-cracked concrete
Béton non fissuré
Assembled
stainless steel A4
Code
75320006065
(2)
75320006085
(2)
75320008050
(1)(2)
75320008065
75320008075
75320008090
75320008115
75320008135
75320008165
75320010060
(1)(2)
75320010075
75320010090
75320010120
75320012080
(1)(2)
75320012100
75320012110
75320012135
75320012160
75320012185
75320016110
(1)(2)
75320016125
75320016145
75320016175
Dimension
Ø x L
M6x65
M6x85
M8x50
M8x65
M8x75
M8x90
M8x115
M8x135
M8x165
M10x60
M10x75
M10x90
M10x120
M12x80
M12x100
M12x110
M12x135
M12x160
M12x185
M16x110
M16x125
M16x145
M16x175
Thread length
Longueur filet
40
60
23
38
48
63
83
88
88
28
43
55
85
40
58
68
93
93
93
53
68
88
88
Fixing thickness
Épaiss. à fixer
max
15
35
5
7
15
30
55
75
105
5
5
20
50
7
10
20
45
70
100
15
10
30
60
Outerbox
Pkg.
Cond.
100
1000
100
1000
100
1000
100
1000
100
400
100
400
100
400
50
200
50
200
50
500
50
500
50
200
50
200
50
200
50
200
50
200
25
100
25
100
25
100
20
80
20
80
20
80
20
80
Monté
inox A4
SCO
page 59
WE ALSO
RECOMMEND
CONSEILS
D’ACHAT
Download:
www.friulsider.com
INS
page 215
33
(1)
Anchors with reduced embedment depths / Cheville avec profondeur d’ancrage réduit
(2)
Size not covered by CE certification / Dimension non certifiée CE
