I valori evidenziati in grassetto rappresentano il superamento della resa limite per le zone di permanenza secondo UNI EN 1264, ovvero una
temperatura superficiale superiore ai 29°C sulla verticale della tubazione, nel punto mediano del circuito.
V,des
°C
F,m
°C
des
W/m
2
cm
Fmax
m
2

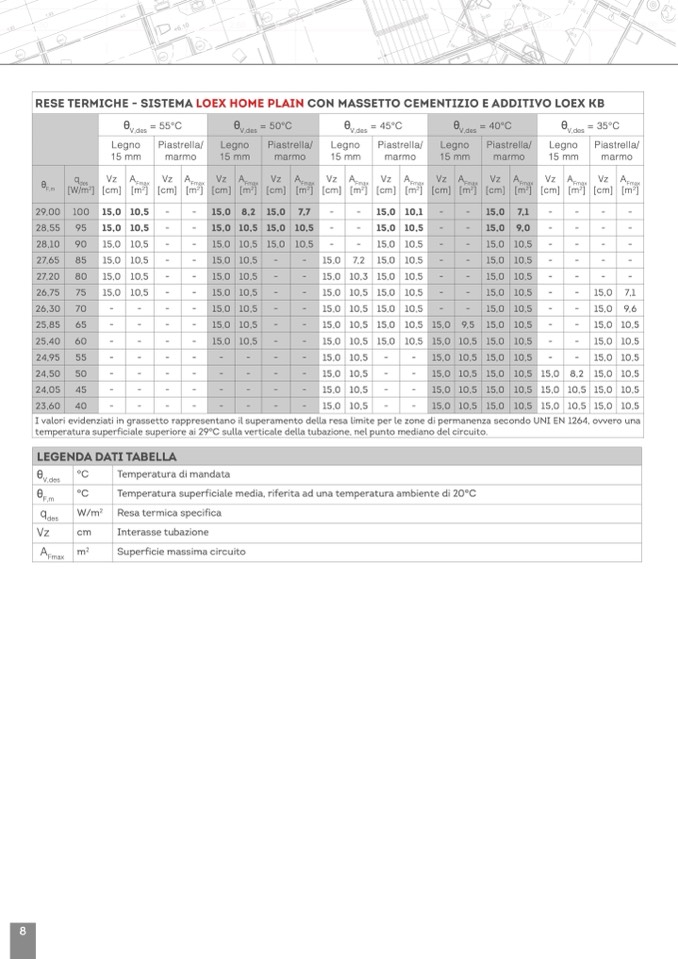

Temperatura di mandata
Temperatura superficiale media, riferita ad una temperatura ambiente di 20°C
Resa termica specifica
Interasse tubazione
Superficie massima circuito
