BATHTUBS AND BATH SCREENS /

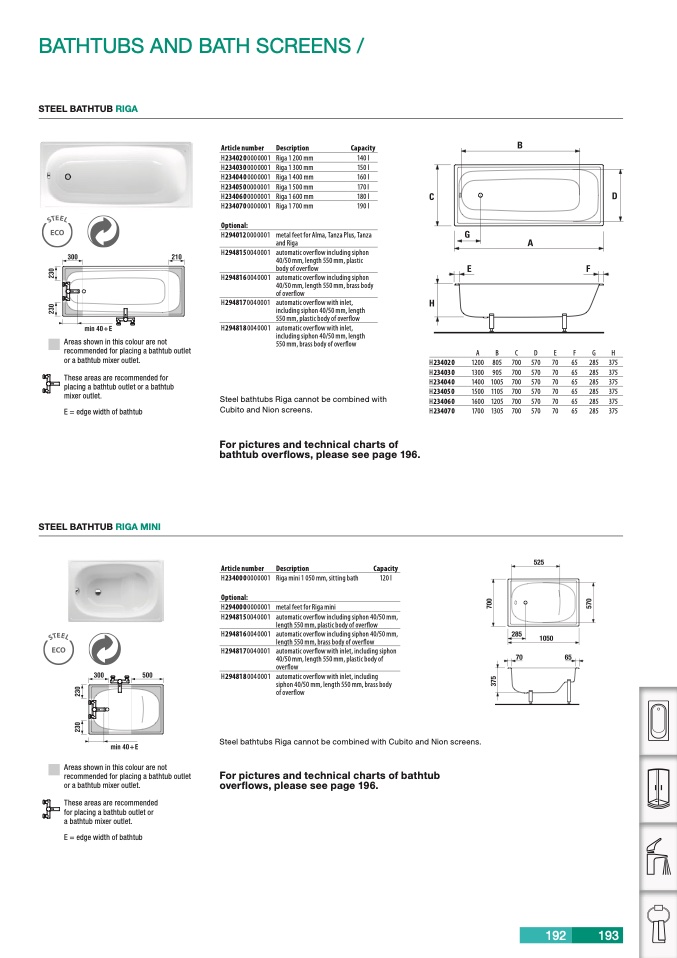

STEEL BATHTUB RIGA

Article number

H2340200000001

H2340300000001

H2340400000001

H2340500000001

H2340600000001

H2340700000001

Optional:

H2940120000001

H2948150040001

H2948160040001

H2948170040001

H2948180040001

Description

Capacity

Riga 1 200 mm

Riga 1 300 mm

Riga 1 400 mm

Riga 1 500 mm

Riga 1 600 mm

Riga 1 700 mm

metal feet for Alma, Tanza Plus,

and Riga

automatic overflow including siphon

40/50 mm, length 550 mm, plastic

body of overflow

automatic overflow including siphon

40/50 mm, length 550 mm, brass body

of overflow

automatic overflow with inlet,

including siphon 40/50 mm, length

550 mm, plastic body of overflow

automatic overflow with inlet,

including siphon 40/50 mm, length

550 mm, brass body of overflow

140l

150l

160l

170 l

180l

190l

Tanza

Areas shown in this colour are not

recommended for placing a bathtub outlet

or a bathtub mixer outlet.

These areas are recommended for

placing a bathtub outlet or a bathtub

mixer outlet.

E = edge width of bathtub

STEEL BATHTUB RIGA MINI

A

B

C

D

E

F

G

H

Steel bathtubs Riga cannot be combined with

Cubito and Nion screens.

For pictures and technical charts of

bathtub overflows, please see page 196.

H234020

1200 805 700

H234030

1300 905 700

H234040

1400 1005 700

H234050

1500 1105 700

H234060

1600 1205 700

H234070

1700 1305 700

570

70

570

70

570

70

570

70

570

70

570

70

65

65

65

65

65

65

285 375

285 375

285 375

285 375

285 375

285 375

Article number

H2340000000001

Optional:

H2940000000001

H2948150040001

H2948160040001

H2948170040001

H2948180040001

Description

Capacity

Riga mini 1 050 mm, sitting bath

120 l

metal feet for Riga mini

automatic overflow including siphon 40/50 mm,

length 550 mm, plastic body of overflow

automatic overflow including siphon 40/50 mm,

length 550 mm, brass body of overflow

automatic overflow with inlet, including siphon

40/50 mm, length 550 mm, plastic body of

overflow

automatic overflow with inlet, including

siphon 40/50 mm, length 550 mm, brass body

of overflow

Areas shown in this colour are not

recommended for placing a bathtub outlet

or a bathtub mixer outlet.

These areas are recommended

for placing a bathtub outlet or

a bathtub mixer outlet.

E = edge width of bathtub

Steel bathtubs Riga cannot be combined with Cubito and Nion screens.

For pictures and technical charts of bathtub

overflows, please see page 196.
