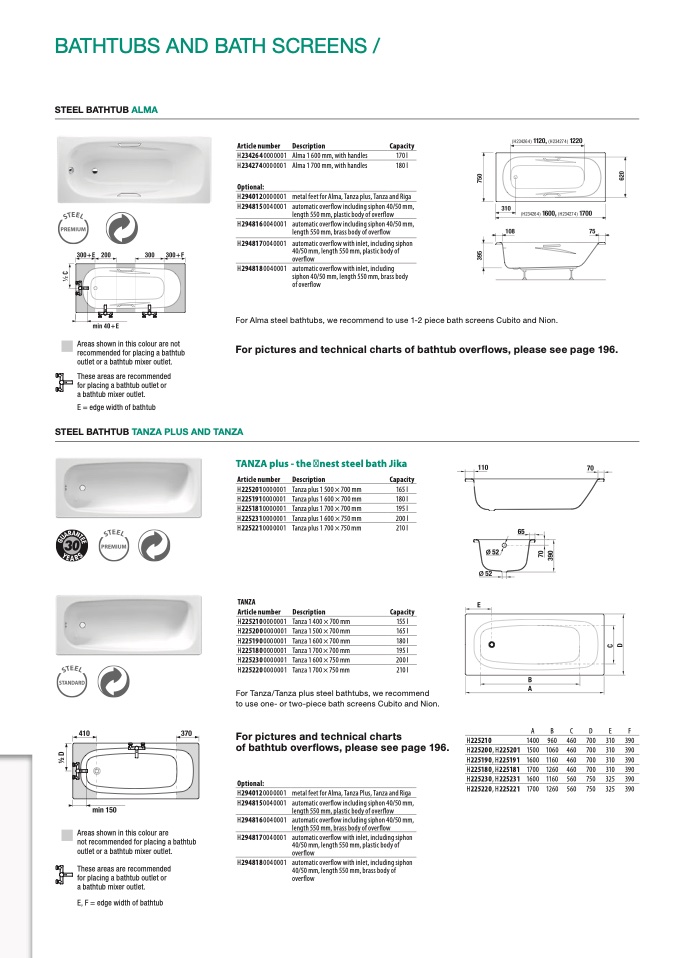

BATHTUBS AND BATH SCREENS /

STEEL BATHTUB ALMA

Areas shown in this colour are not

recommended for placing a bathtub

outlet or a bathtub mixer outlet.

These areas are recommended

for placing a bathtub outlet or

a bathtub mixer outlet.

E = edge width of bathtub

STEEL BATHTUB TANZA PLUS AND TANZA

TANZA plus - the finest steel bath Jika

Areas shown in this colour are

not recommended for placing a bathtub

outlet or a bathtub mixer outlet.

These areas are recommended

for placing a bathtub outlet or

a bathtub mixer outlet.

E, F = edge width of bathtub

Article number

H2342640000001

H2342740000001

Optional:

H2940120000001

H2948150040001

H2948160040001

H2948170040001

H2948180040001

Description

Capacity

Alma 1 600 mm, with handles

170 l

Alma 1 700 mm, with handles

180 l

metal feet for Alma, Tanza plus, Tanza and Riga

automatic overflow including siphon 40/50 mm,

length 550 mm, plastic body of overflow

automatic overflow including siphon 40/50 mm,

length 550 mm, brass body of overflow

automatic overflow with inlet, including siphon

40/50 mm, length 550 mm, plastic body of

overflow

automatic overflow with inlet, including

siphon 40/50 mm, length 550 mm, brass body

of overflow

For Alma steel bathtubs, we recommend to use 1-2 piece bath screens Cubito and Nion.

For pictures and technical charts of bathtub overflows, please see page 196.

Article number

H2252010000001

H2251910000001

H2251810000001

H2252310000001

H2252210000001

TANZA

Article number

H2252100000001

H2252000000001

H2251900000001

H2251800000001

H2252300000001

H2252200000001

Description

Capacity

65

Ø

52

65

Ø

52

Tanza plus 1 500 × 700 mm

Tanza plus 1 600 × 700 mm

Tanza plus 1 700 × 700 mm

Tanza plus 1 600 × 750 mm

Tanza plus 1 700 × 750 mm

Description

Tanza 1 400 × 700 mm

Tanza 1 500 × 700 mm

Tanza 1 600 × 700 mm

Tanza 1 700 × 700 mm

Tanza 1 600 × 750 mm

Tanza 1 700 × 750 mm

165 l

180 l

195 l

200 l

210 l

Capacity

155 l

165 l

180 l

195 l

200 l

210 l

65

Ø

52

For Tanza/Tanza plus steel bathtubs, we recommend

to use one- or two-piece bath screens Cubito and Nion.

For pictures and technical charts

of bathtub overflows, please see page 196.

A

B

C

D

E

F

Optional:

H2940120000001

H2948150040001

H2948160040001

H2948170040001

H2948180040001

metal feet for Alma, Tanza Plus, Tanza and Riga

automatic overflow including siphon 40/50 mm,

length 550 mm, plastic body of overflow

automatic overflow including siphon 40/50 mm,

length 550 mm, brass body of overflow

automatic overflow with inlet, including siphon

40/50 mm, length 550 mm, plastic body of

overflow

automatic overflow with inlet, including siphon

40/50 mm, length 550 mm, brass body of

overflow

H225210

H225200, H225201

H225190, H225191

H225180, H225181

H225230, H225231

H225220, H225221

1400 960 460 700

1500 1060 460 700

1600 1160 460 700

1700 1260 460 700

1600 1160 560 750

1700 1260 560 750

310 390

310 390

310 390

310 390

325 390

325 390
