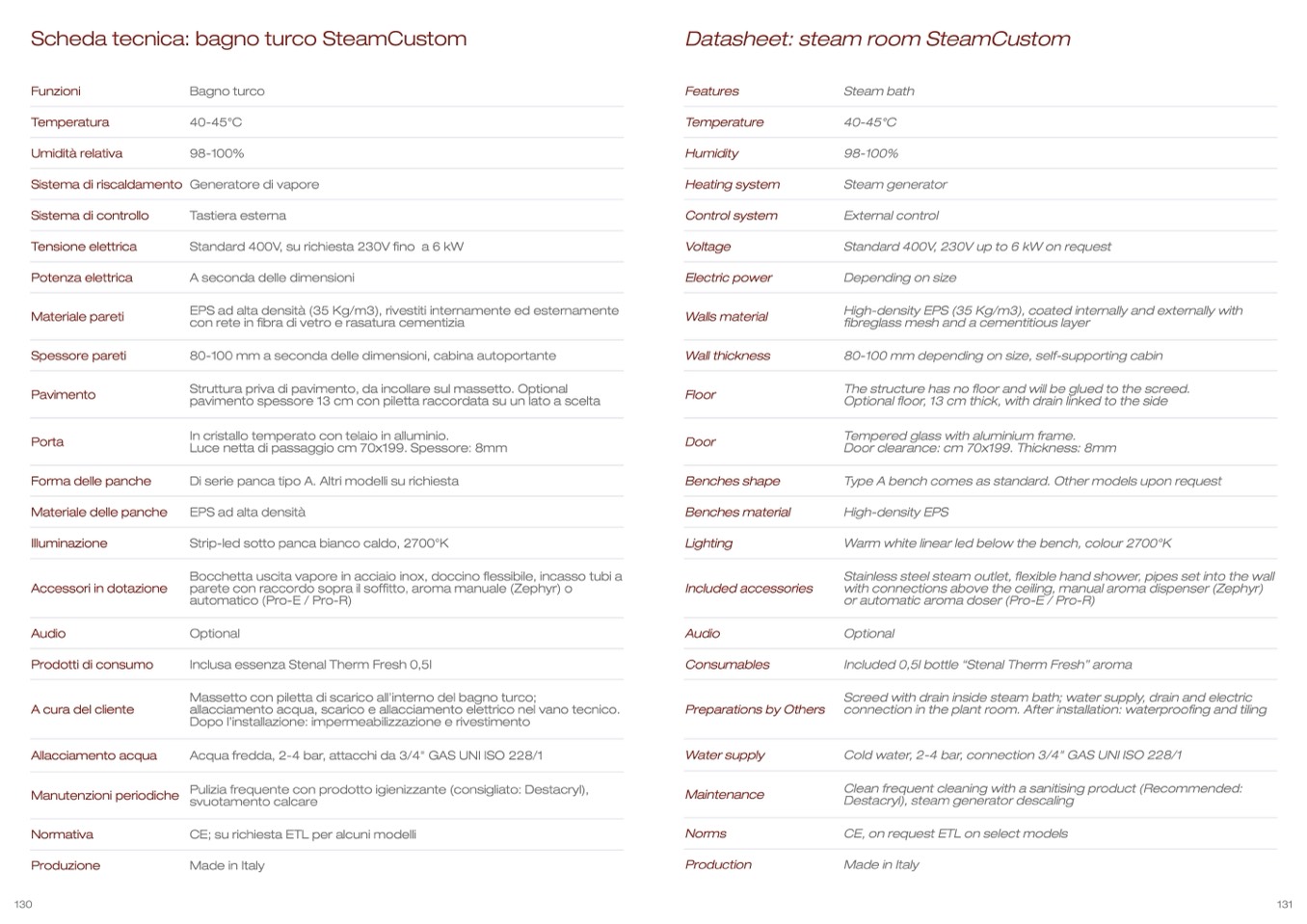

Scheda tecnica: bagno turco SteamCustom

Datasheet: steam room SteamCustom

Funzioni

Temperatura

Umidità relativa

Sistema di riscaldamento

Sistema di controllo

Tensione elettrica

Potenza elettrica

Materiale pareti

Spessore pareti

Pavimento

Porta

Forma delle panche

Materiale delle panche

Illuminazione

Accessori in dotazione

Audio

Prodotti di consumo

A cura del cliente

Allacciamento acqua

Manutenzioni periodiche

Normativa

Produzione

Bagno turco

40-45°C

98-100%

Generatore di vapore

Tastiera esterna

Standard 400V, su richiesta 230V fino a 6 kW

A seconda delle dimensioni

EPS ad alta densità (35 Kg/m3), rivestiti internamente ed esternamente

con rete in fibra di vetro e rasatura cementizia

80-100 mm a seconda delle dimensioni, cabina autoportante

Struttura priva di pavimento, da incollare sul massetto. Optional

pavimento spessore 13 cm con piletta raccordata su un lato a scelta

In cristallo temperato con telaio in alluminio.

Luce netta di passaggio cm 70x199. Spessore: 8mm

Di serie panca tipo A. Altri modelli su richiesta

EPS ad alta densità

Strip-led sotto panca bianco caldo, 2700°K

Bocchetta uscita vapore in acciaio inox, doccino flessibile, incasso tubi a

parete con raccordo sopra il soffitto, aroma manuale (Zephyr) o

automatico (Pro-E / Pro-R)

Optional

Inclusa essenza Stenal Therm Fresh 0,5l

Massetto con piletta di scarico all’interno del bagno turco;

allacciamento acqua, scarico e allacciamento elettrico nel vano tecnico.

Dopo l’installazione: impermeabilizzazione e rivestimento

Acqua fredda, 2-4 bar, attacchi da 3/4" GAS UNI ISO 228/1

Pulizia frequente con prodotto igienizzante (consigliato: Destacryl),

svuotamento calcare

CE; su richiesta ETL per alcuni modelli

Made in Italy

Features

Temperature

Humidity

Heating system

Control system

Voltage

Electric power

Walls material

Wall thickness

Floor

Door

Benches shape

Benches material

Lighting

Included accessories

Audio

Consumables

Preparations by Others

Water supply

Maintenance

Norms

Production

Steam bath

40-45°C

98-100%

Steam generator

External control

Standard 400V, 230V up to 6 kW on request

Depending on size

High-density EPS (35 Kg/m3), coated internally and externally with

fibreglass mesh and a cementitious layer

80-100 mm depending on size, self-supporting cabin

The structure has no floor and will be glued to the screed.

Optional floor, 13 cm thick, with drain linked to the side

Tempered glass with aluminium frame.

Door clearance: cm 70x199. Thickness: 8mm

Type A bench comes as standard. Other models upon request

High-density EPS

Warm white linear led below the bench, colour 2700°K

Stainless steel steam outlet, flexible hand shower, pipes set into the wall

with connections above the ceiling, manual aroma dispenser (Zephyr)

or automatic aroma doser (Pro-E / Pro-R)

Optional

Included 0,5l bottle “Stenal Therm Fresh” aroma

Screed with drain inside steam bath; water supply, drain and electric

connection in the plant room. After installation: waterproofing and tiling

Cold water, 2-4 bar, connection 3/4" GAS UNI ISO 228/1

Clean frequent cleaning with a sanitising product (Recommended:

Destacryl), steam generator descaling

CE, on request ETL on select models

Made in Italy
